Step 70

code: ST70F

Material: AISI 304 18/10 Stainless Steel

thickness: 1 mm regular

finish: SatinPlus


Cabinet 80 cm

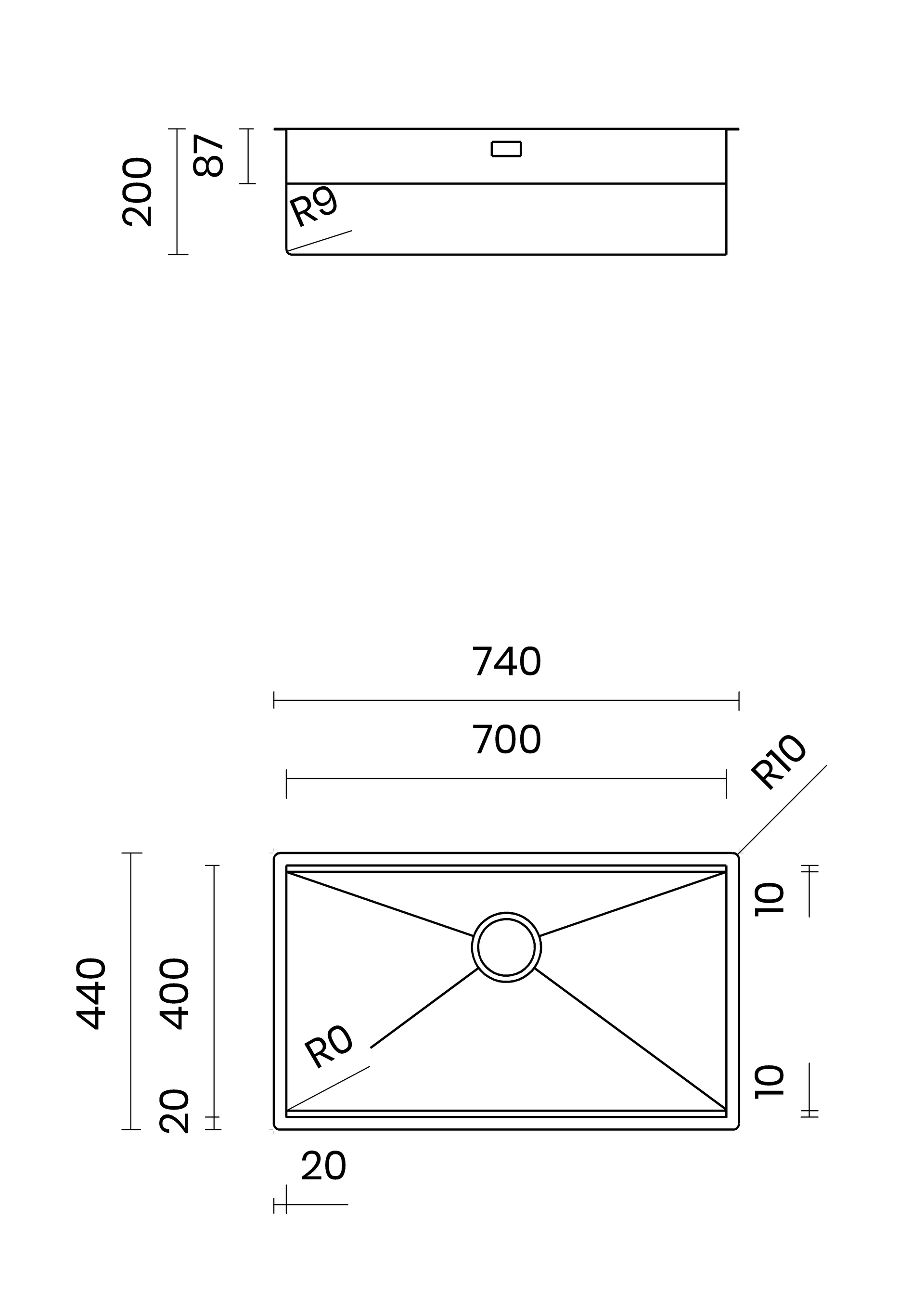

external dimensions 740x440 mm

bowl dimensions 700x400 mm

radius 0 / 9 mm


Rectangular overflow

waste: Lotus model Ø 114 mm in satin stainless steel with rotary control

siphon included


installation: top-mount / flush-mount / under-mount


Packaging size: 80x50x30 cm

Weight: 10 kg

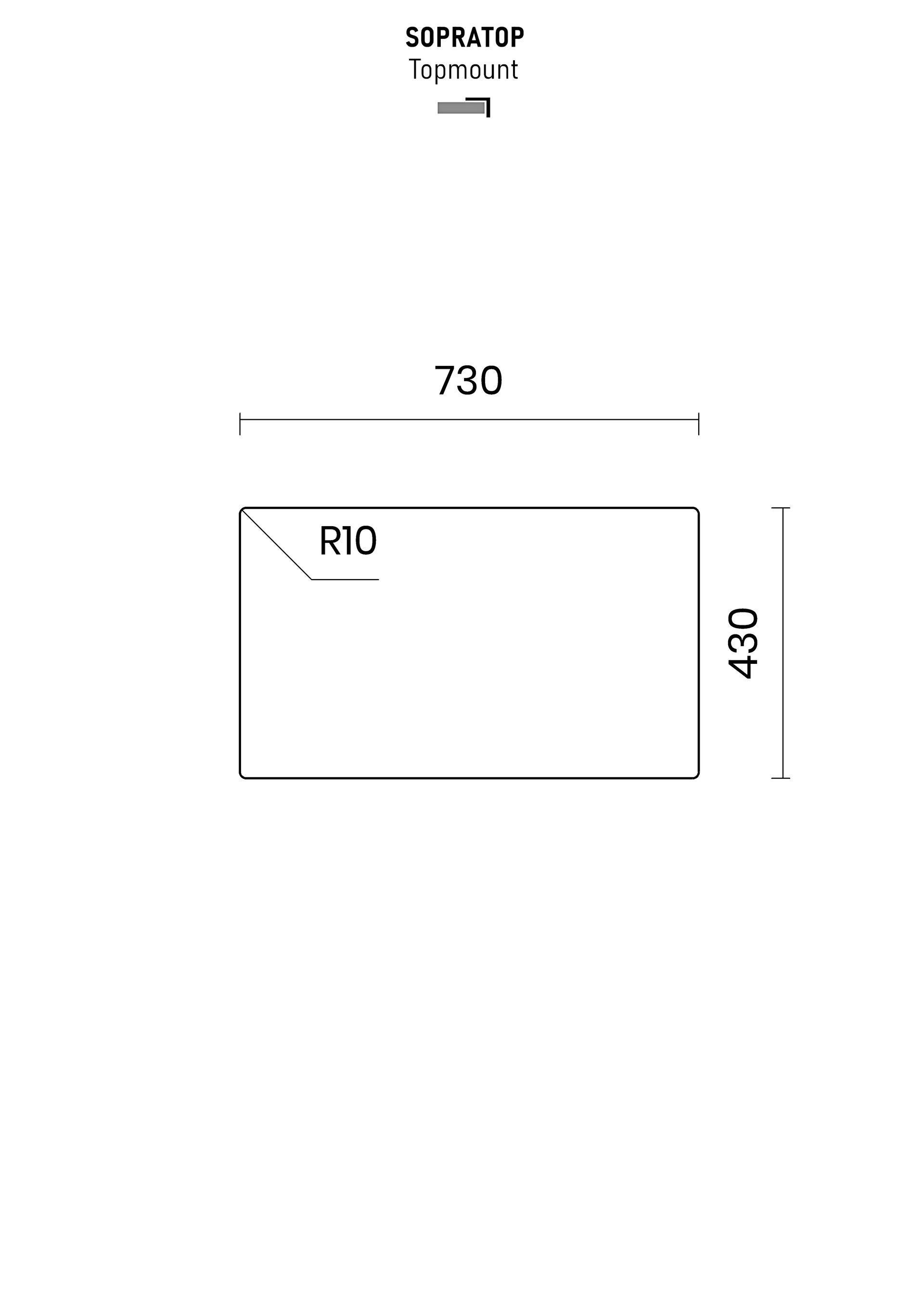

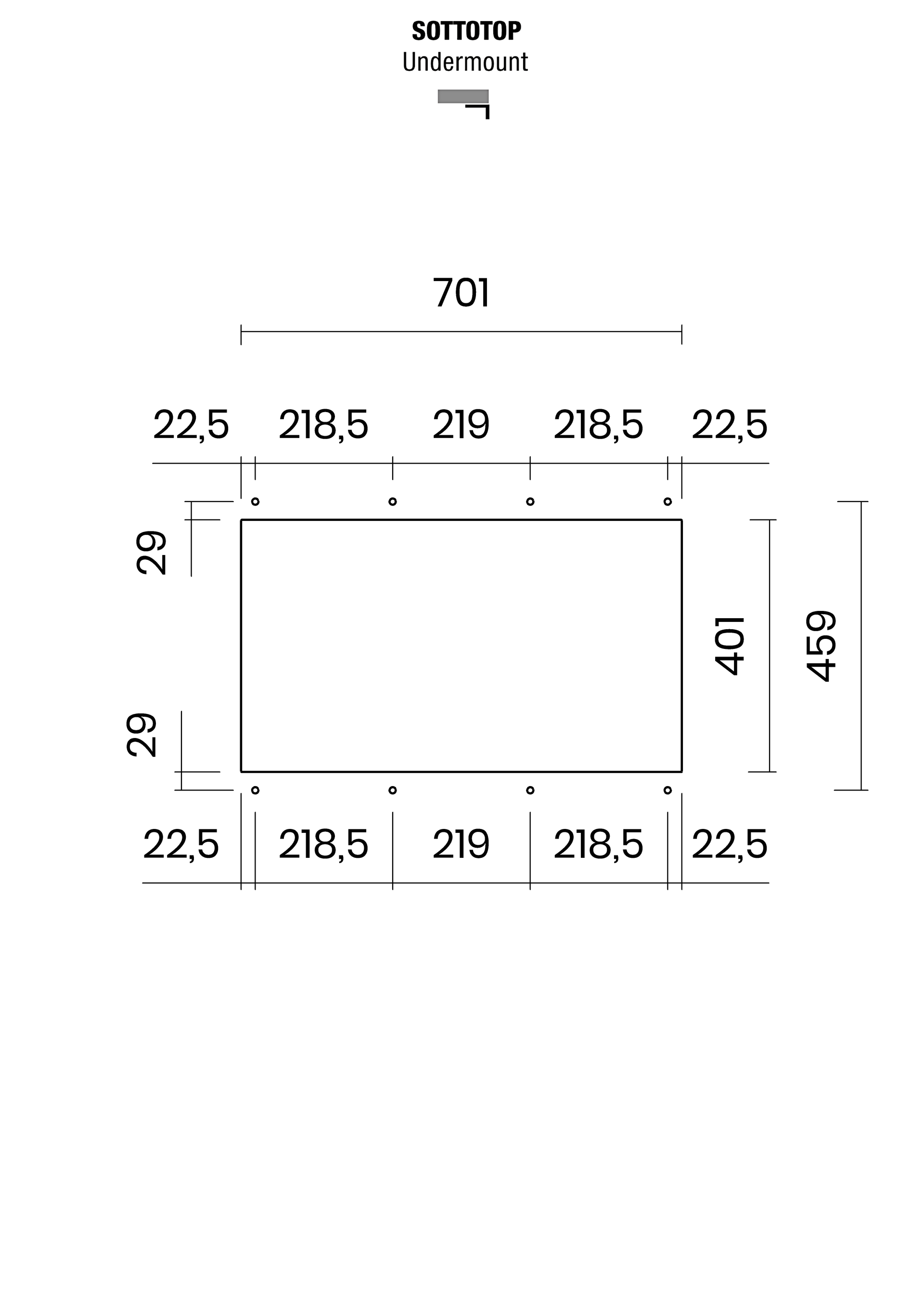

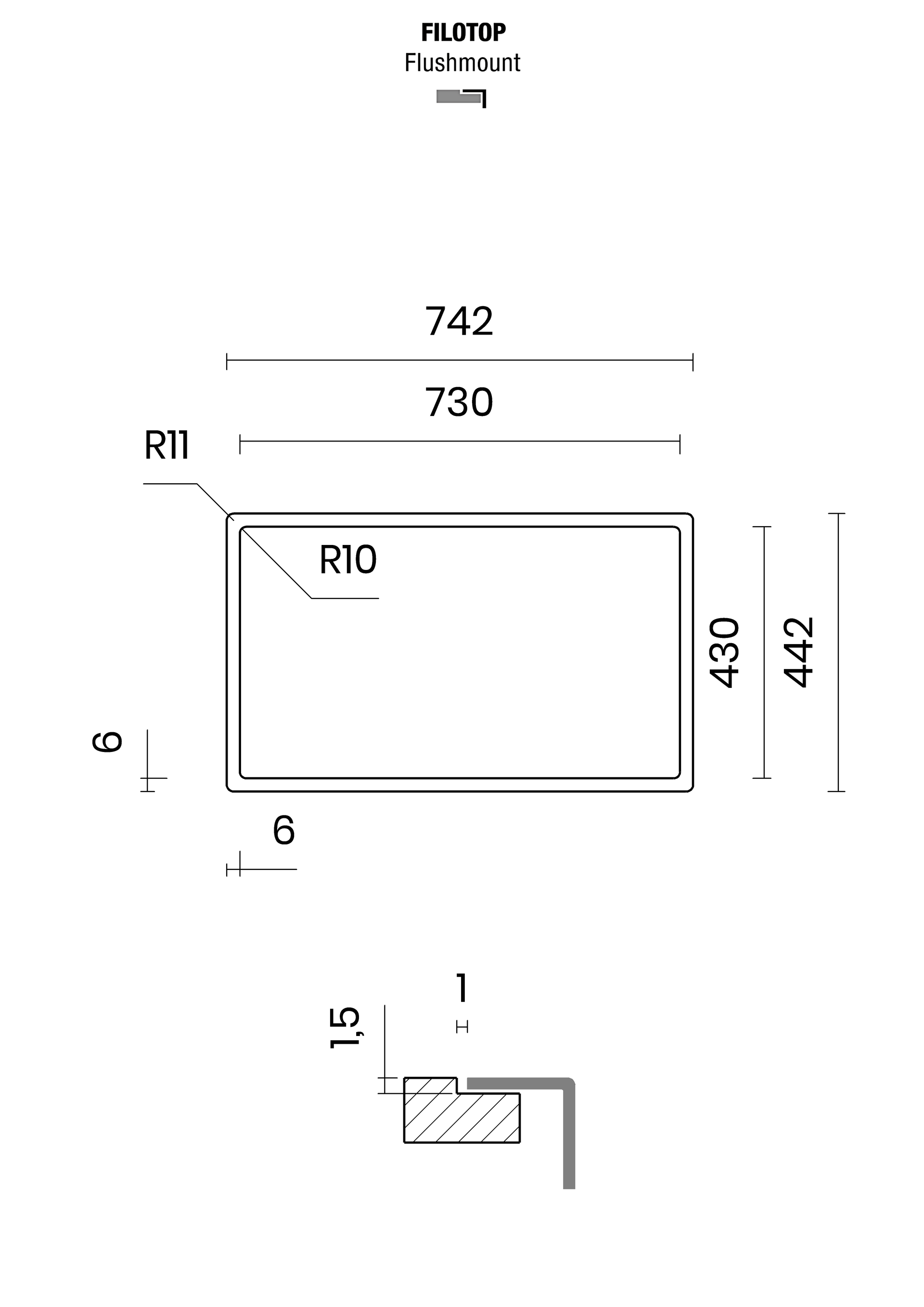

cut-out

downloads

product sheet

installation sheet

file dxf

recommended accessories

sink care
