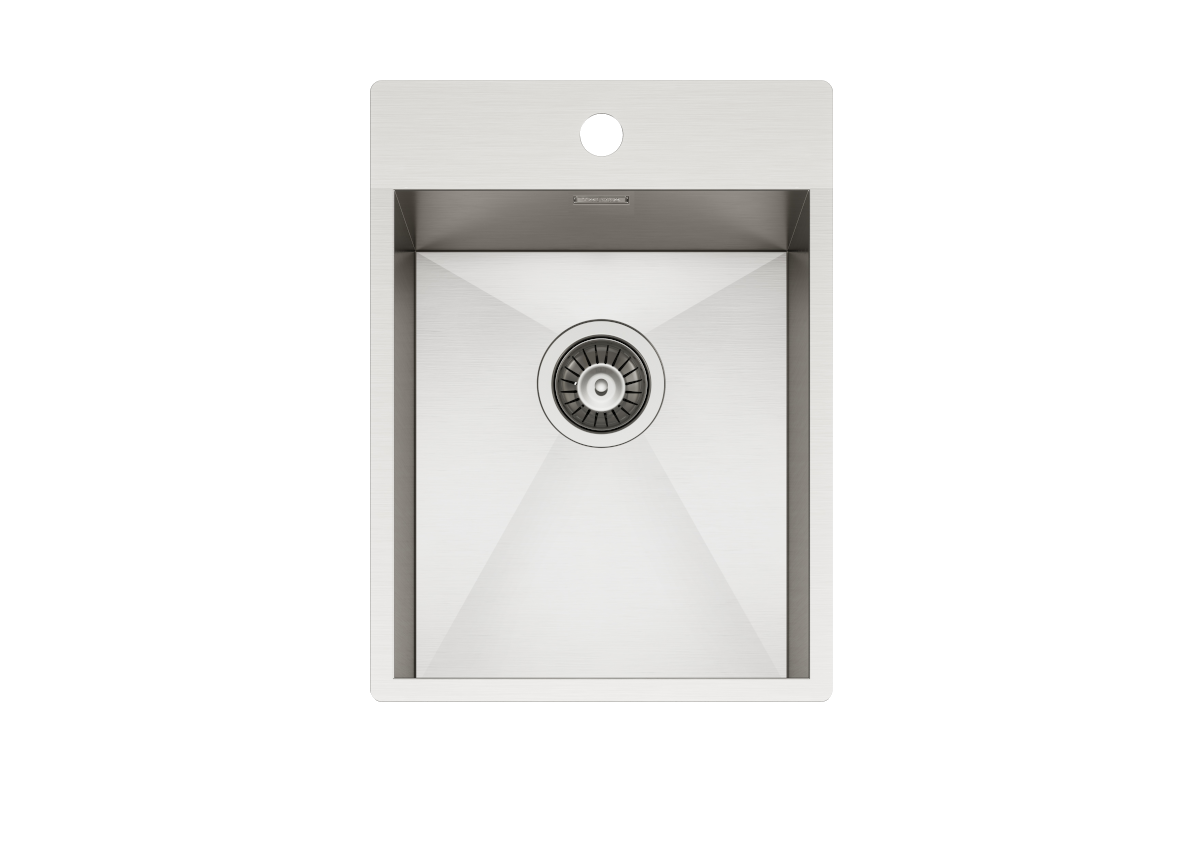

Zero 34 IF

code: ZA34IF

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 45 cm

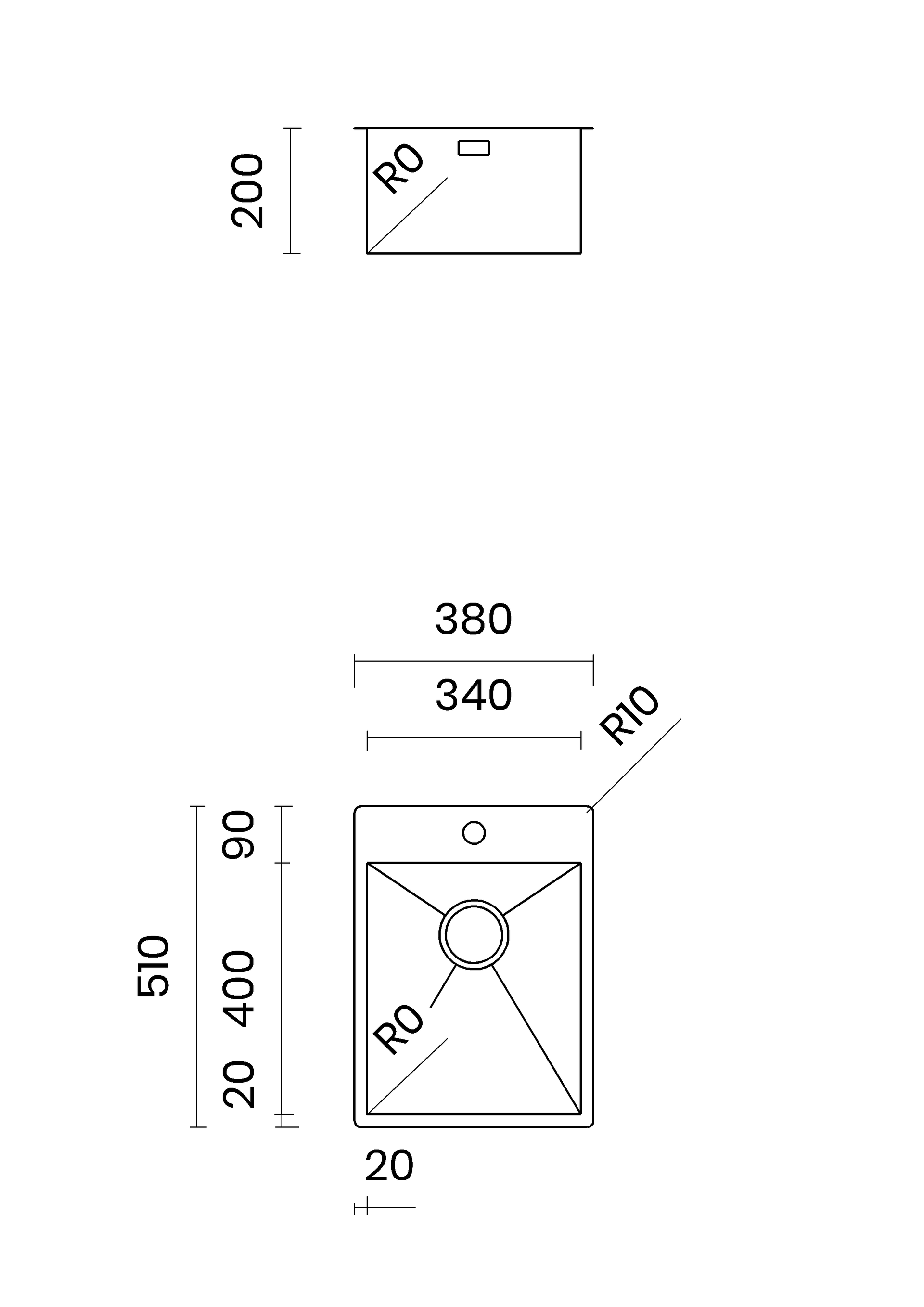

External dimensions 380x510 mm

tub dimensions 340x400 mm

radius 0mm


overflow: integrated

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: over-top / flush-top


Packaging size: 44x56x25 cm

weight: 8.5 kg

the sink is already equipped with a central hole Ø 35 mm. Any additional holes must be specified when ordering

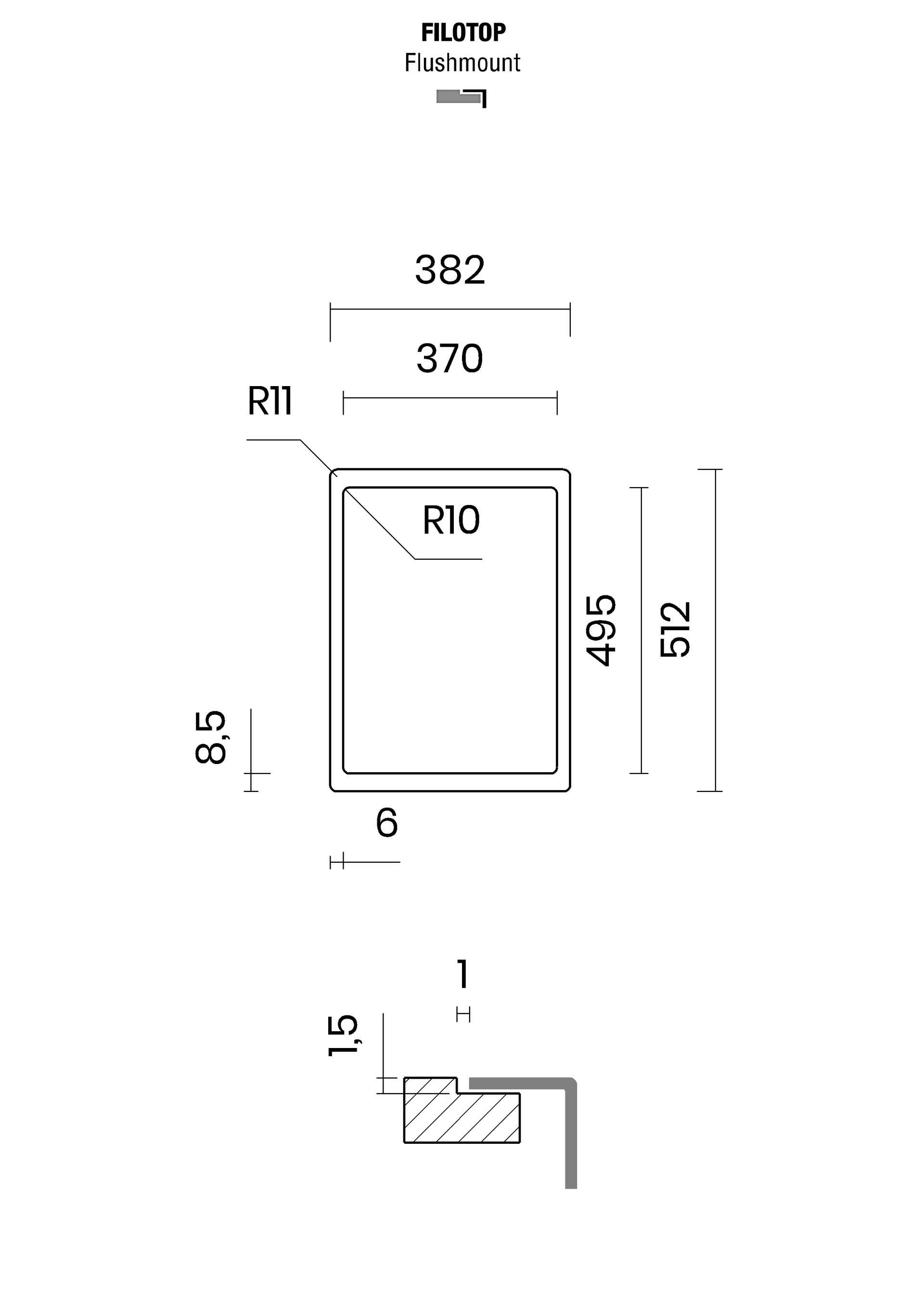

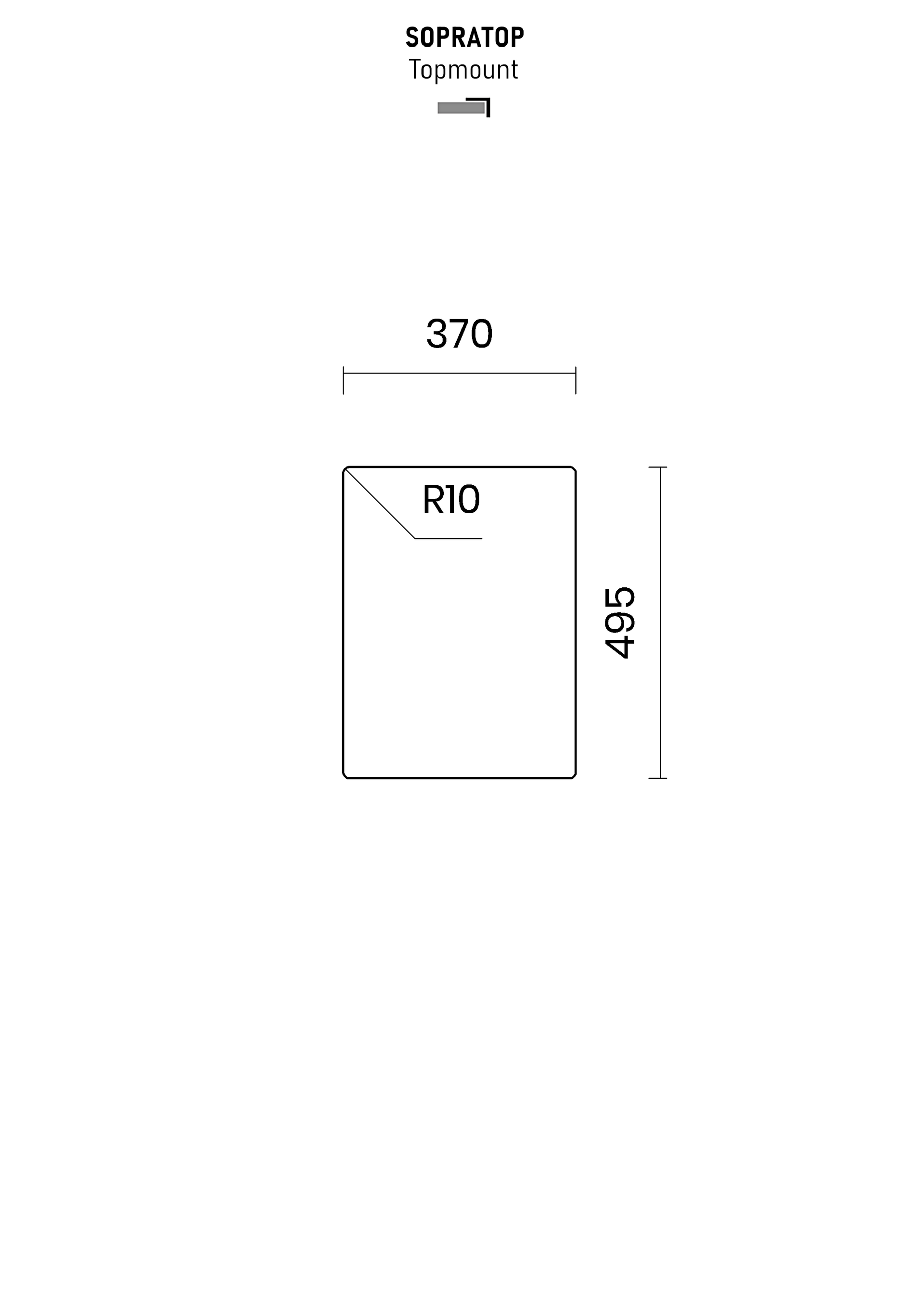

cut-out

downloads

Product sheet

installation sheet

file dxf
