Phantom side 50

code: PA50F

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 70 cm

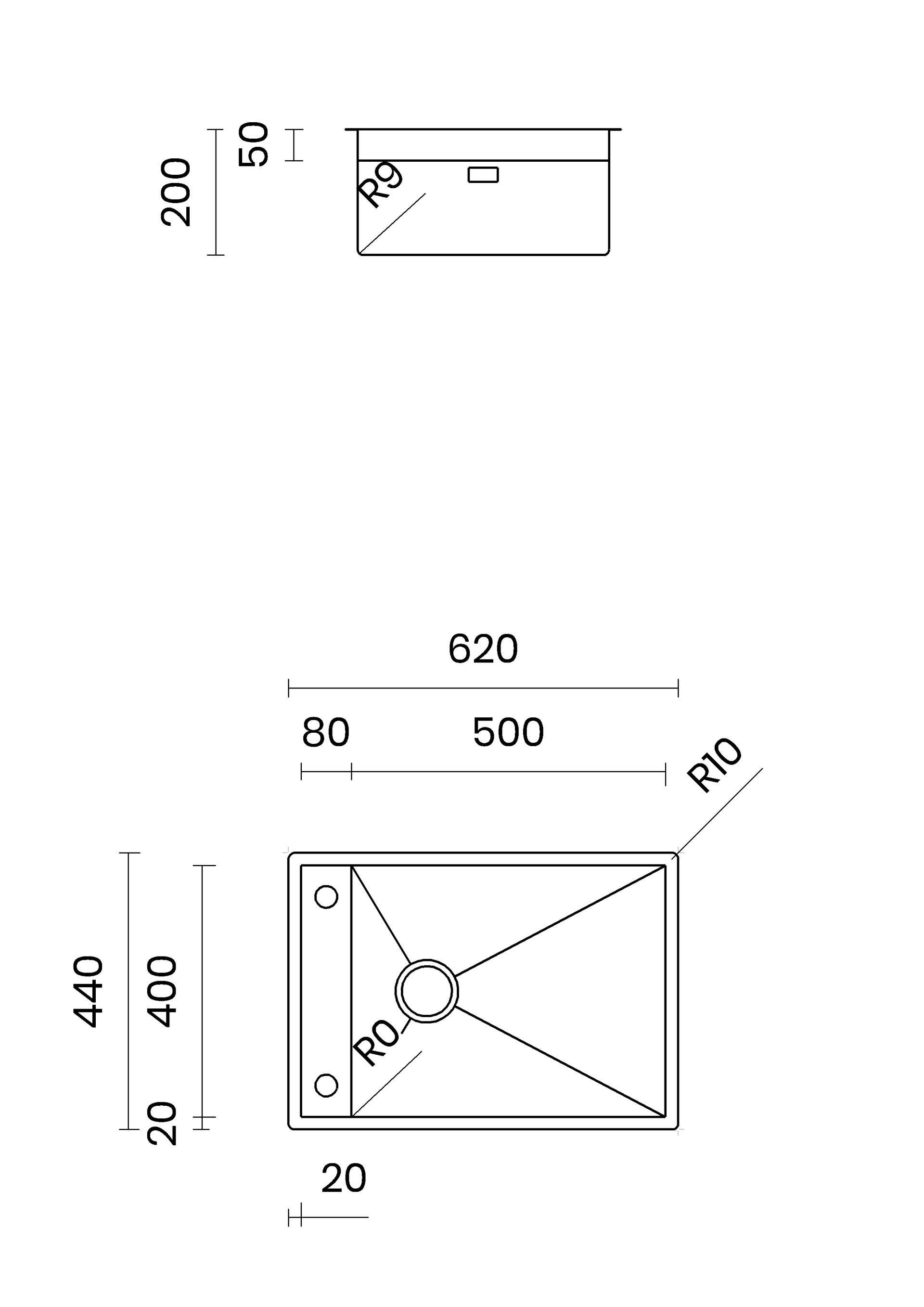

External dimensions 620x440 mm

tub dimensions 500x400 mm

radius 0 / 9 mm


too full: perimeter

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: above-top / flush-mount / under-top


Packaging size: 70x50x25 cm

weight: 9.5 kg

the sink is already equipped with the second hole Ø 35 mm suitable for installing foldable mixers with separate control, or other accessories. On request, the stainless steel cap for closing the second hole is available.

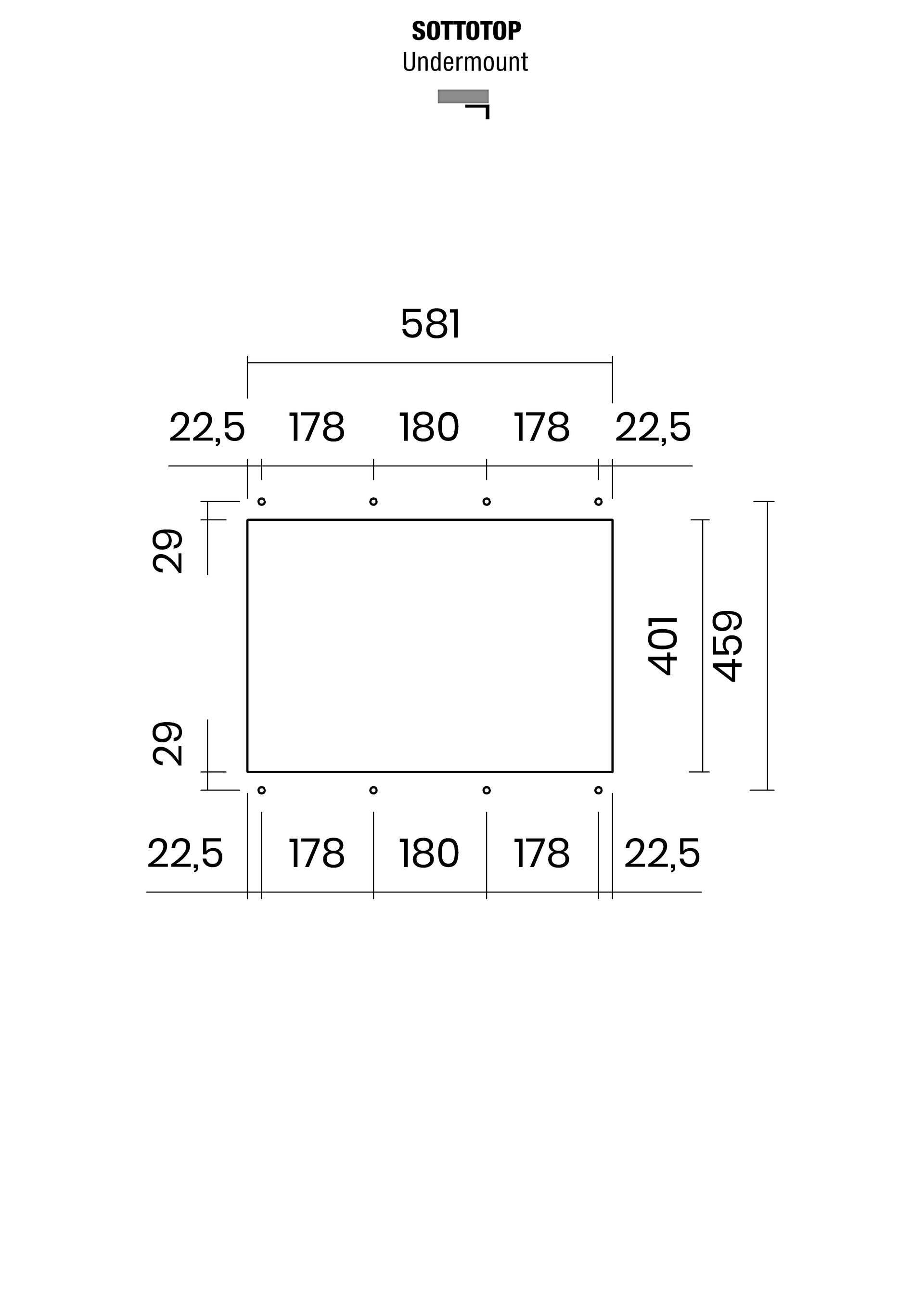

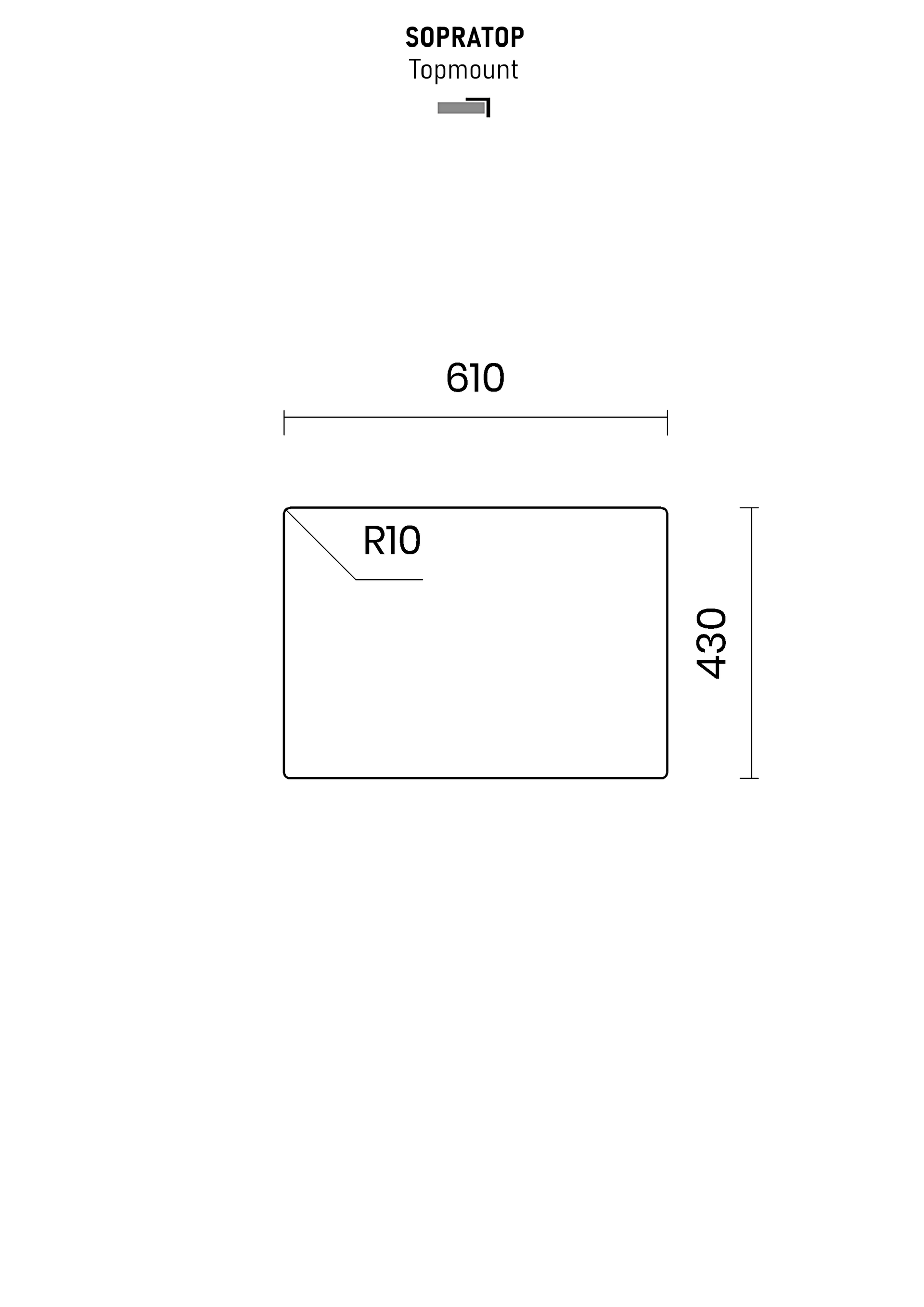

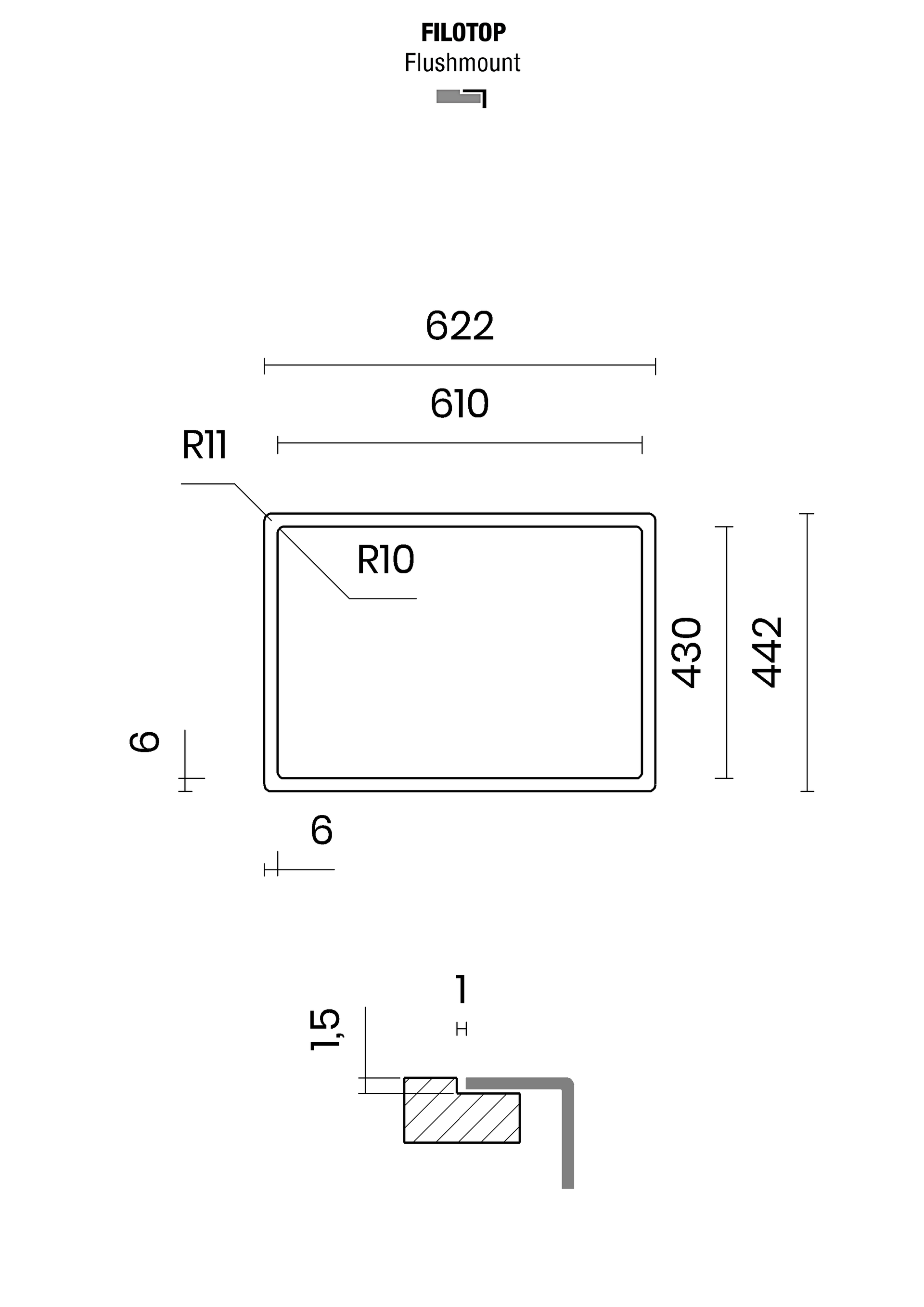

cut-out

downloads

Product sheet

installation sheet

file dxf
