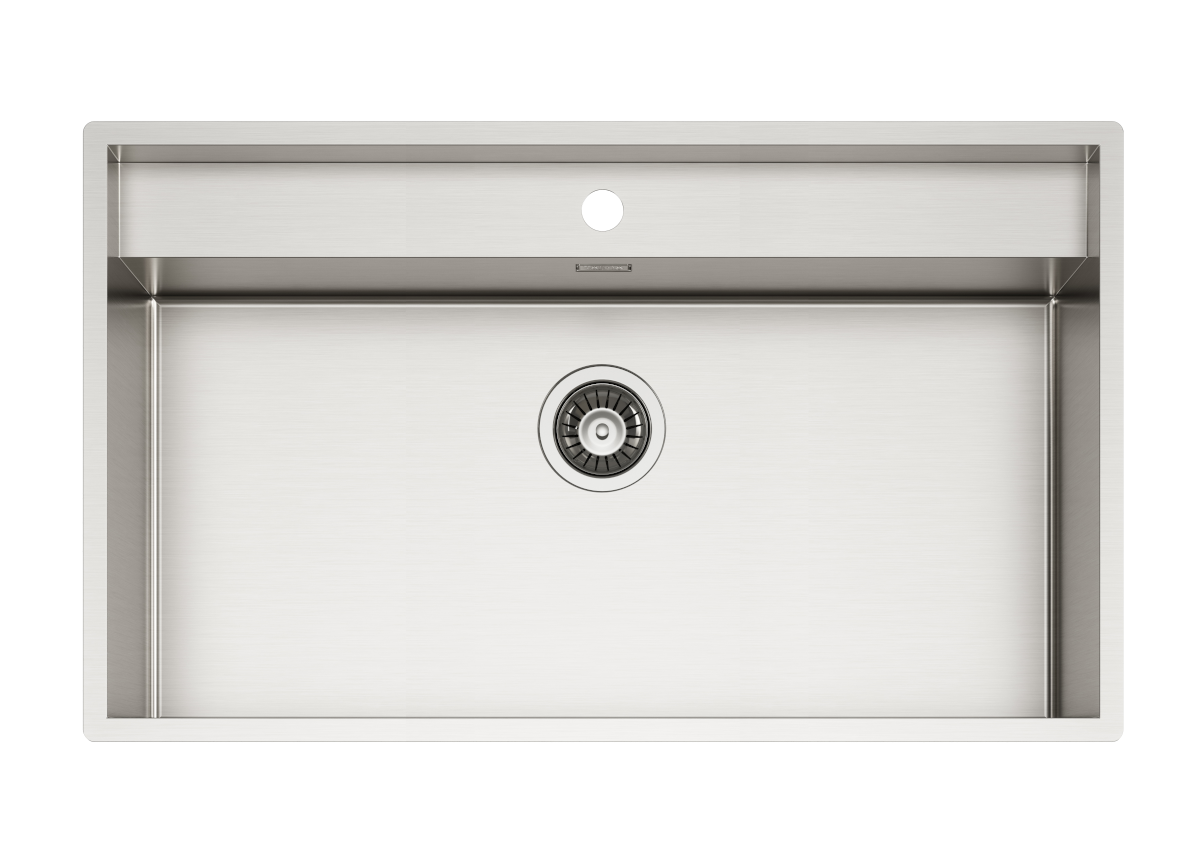

Phantom back 80

code: PT80F

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 90 cm

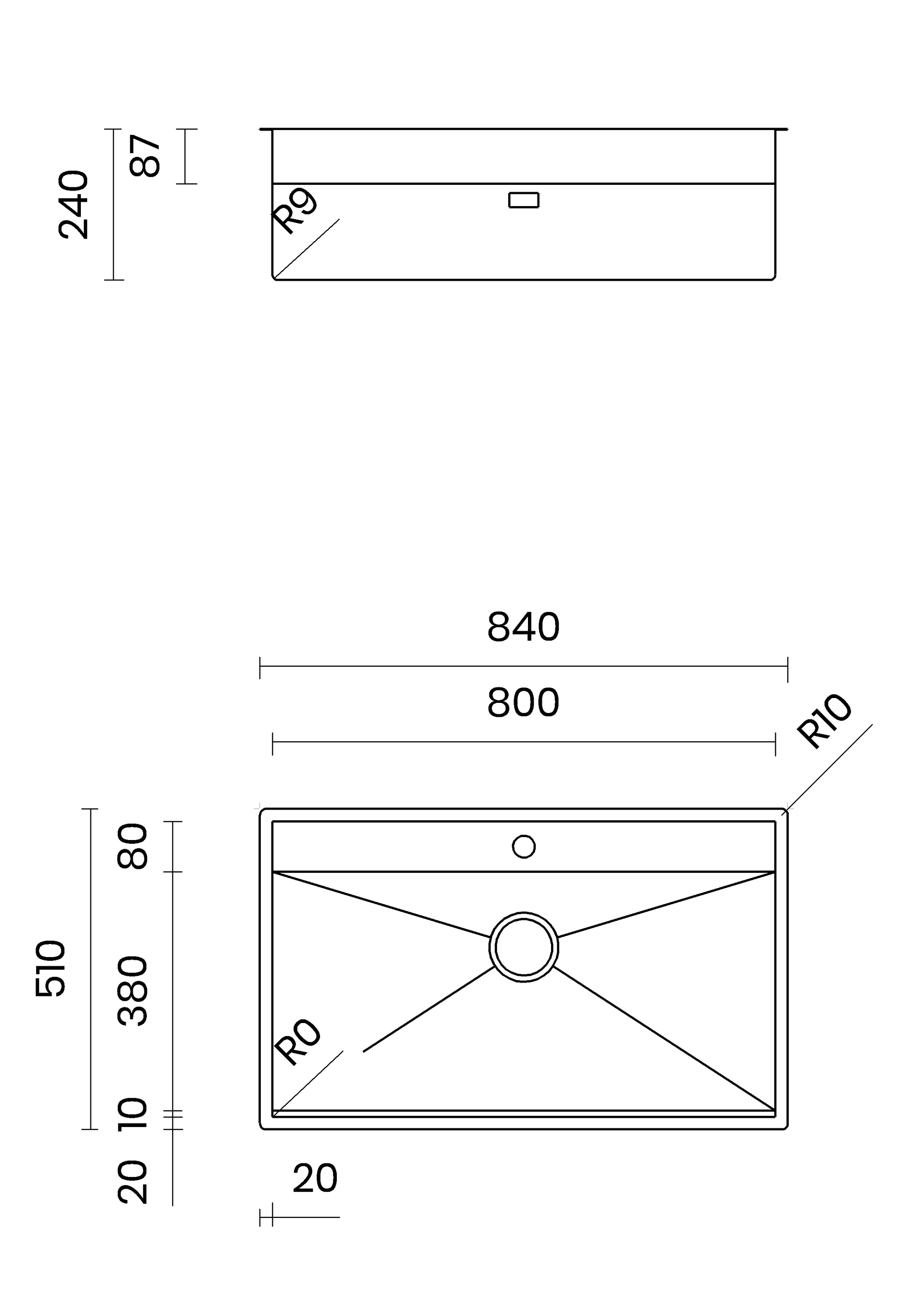

External dimensions 840x510 mm

tub dimensions 800x380 mm

radius 0 / 9 mm


too full: perimeter

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: above-top / flush-mount / under-top


Packaging size: 90x56x30 cm

weight: 14 kg

the sink is already equipped with a central hole Ø 35 mm. Any additional holes must be specified when ordering

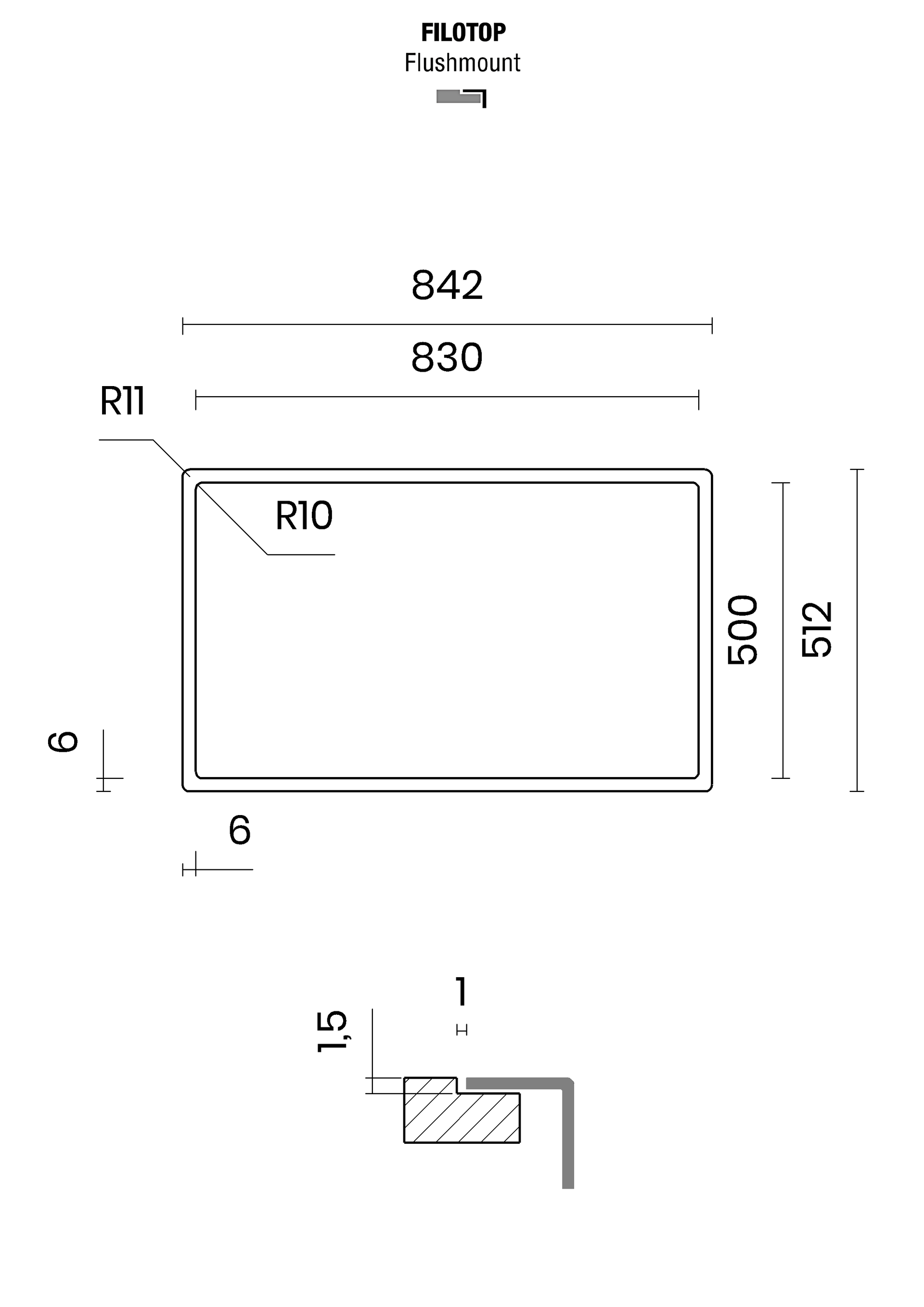

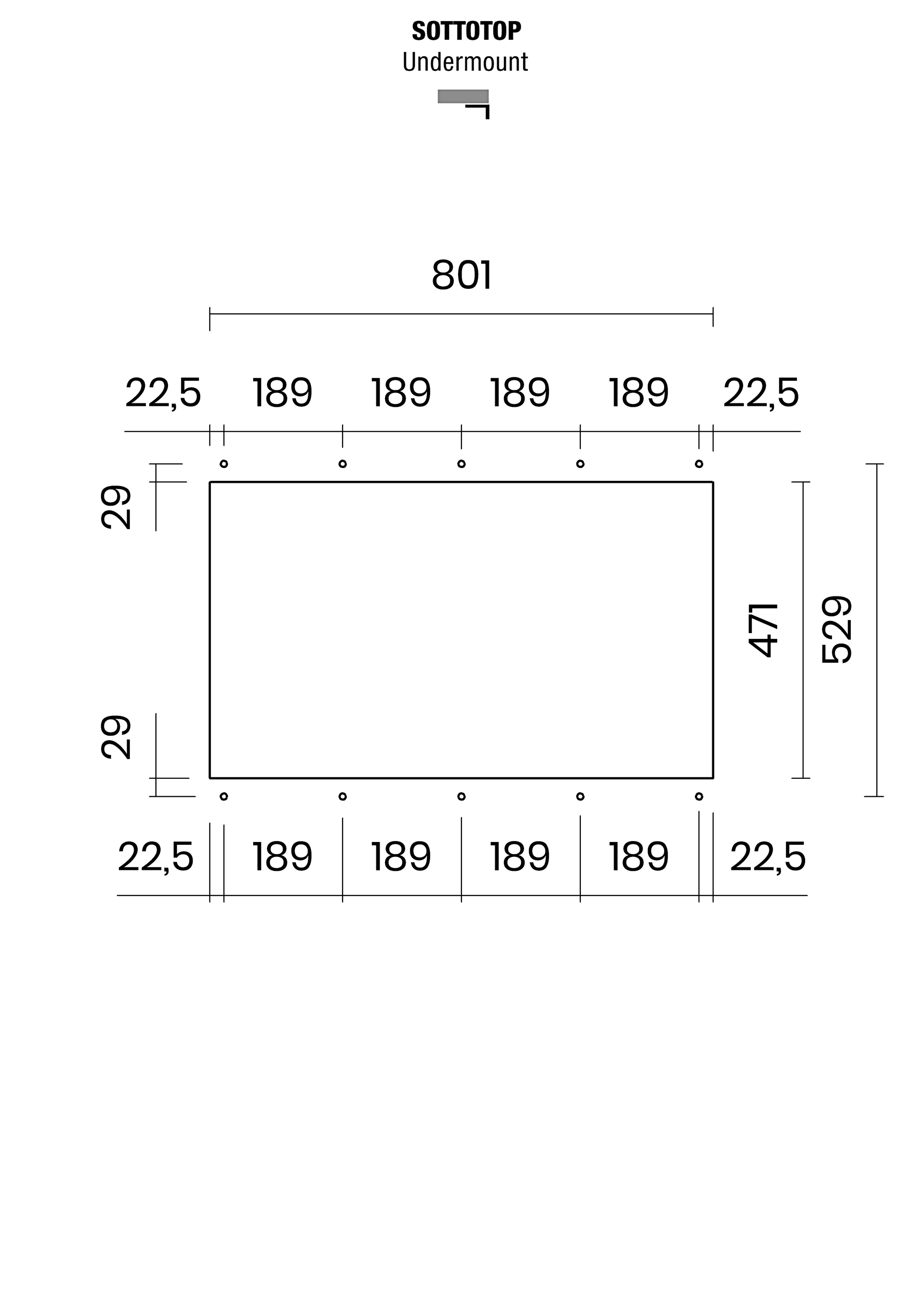

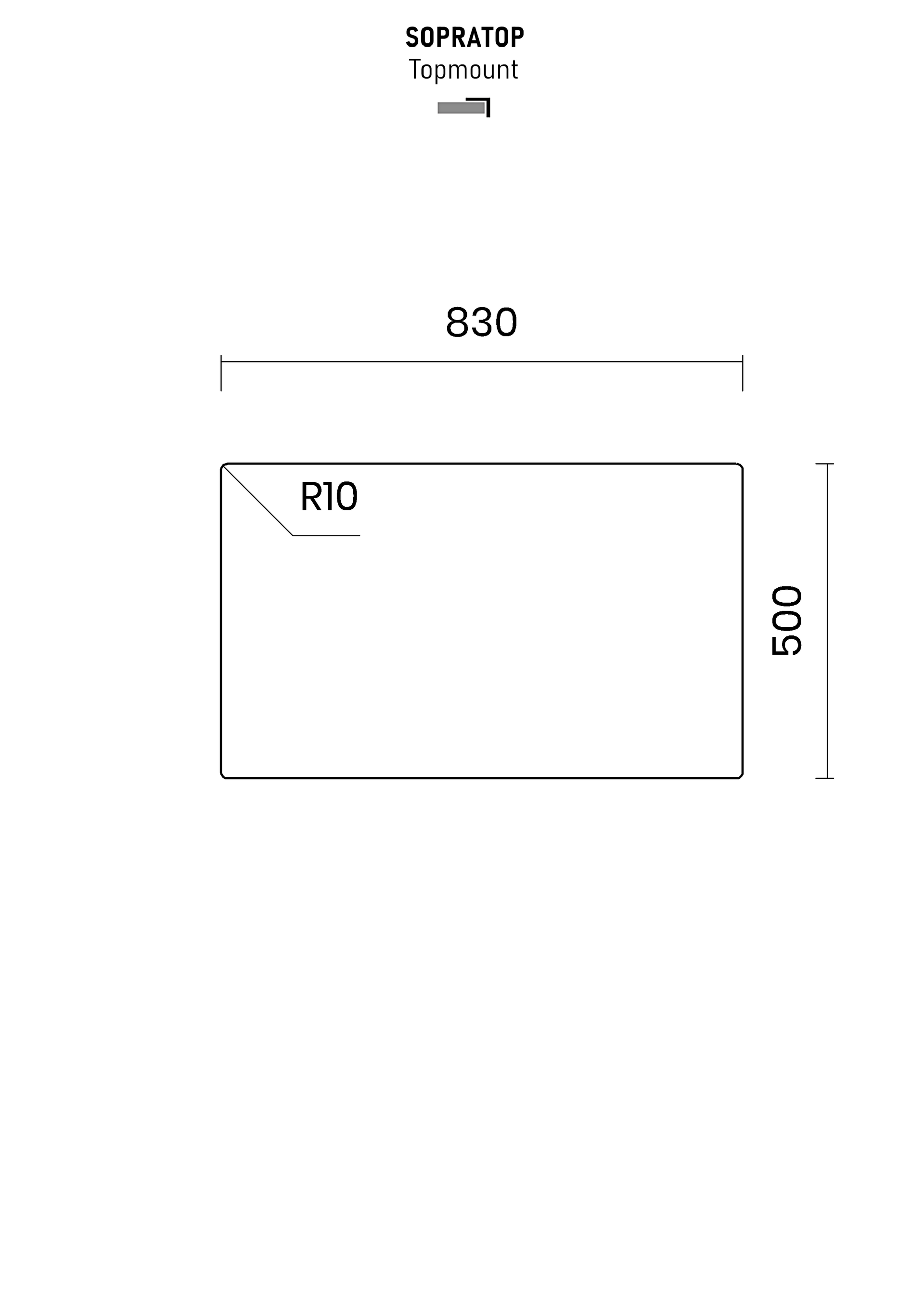

cut-out

downloads

Product sheet

installation sheet

file dxf

Recommended accessories

Sliding stainless steel tray

code 280.pf
data sheet

sink care
