Phantom back 50 Lagoon

code: PTL50F

Material: AISI 316 L Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 60 cm

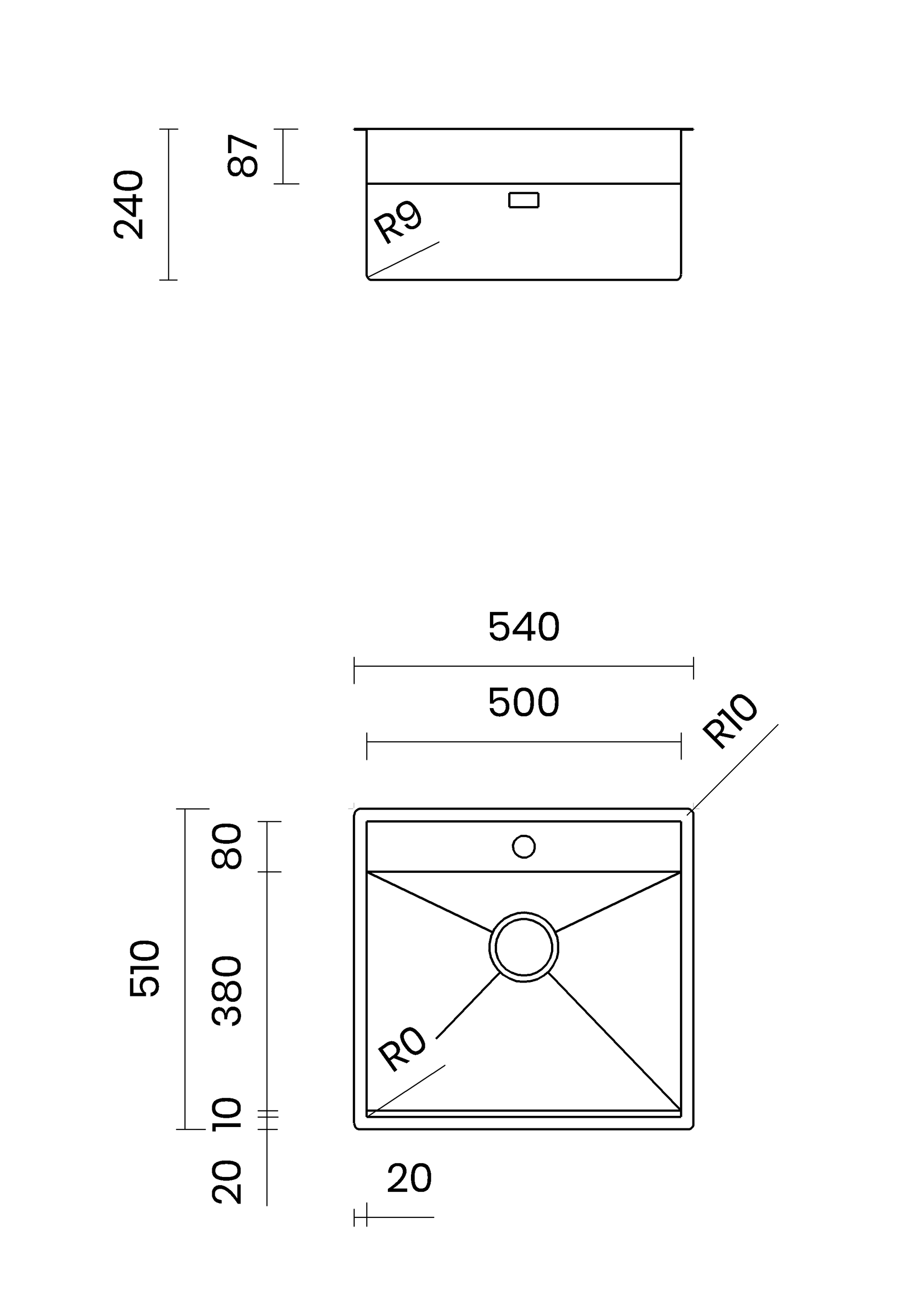

External dimensions 540x510 mm

tub dimensions 500x380 mm

radius 0 / 9 mm


too full: perimeter

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: above-top / flush-mount / under-top


Packaging size: 60x56x30 cm

weight: 10 kg

the sink is already equipped with a central hole Ø 35 mm. Any additional holes must be specified when ordering

cut-out

downloads

Product sheet

installation sheet

file dxf
