Phantom back 40 Lagoon

code: PTL40F

Material: AISI 316 L Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 50 cm

External dimensions 440x510 mm

tub dimensions 400x380 mm

radius 0 / 9 mm


too full: perimeter

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: above-top / flush-mount / under-top


Packaging size: 60x56x30 cm

weight: 9 kg

the sink is already equipped with a Ø 35 mm side hole. Any additional holes must be specified when ordering

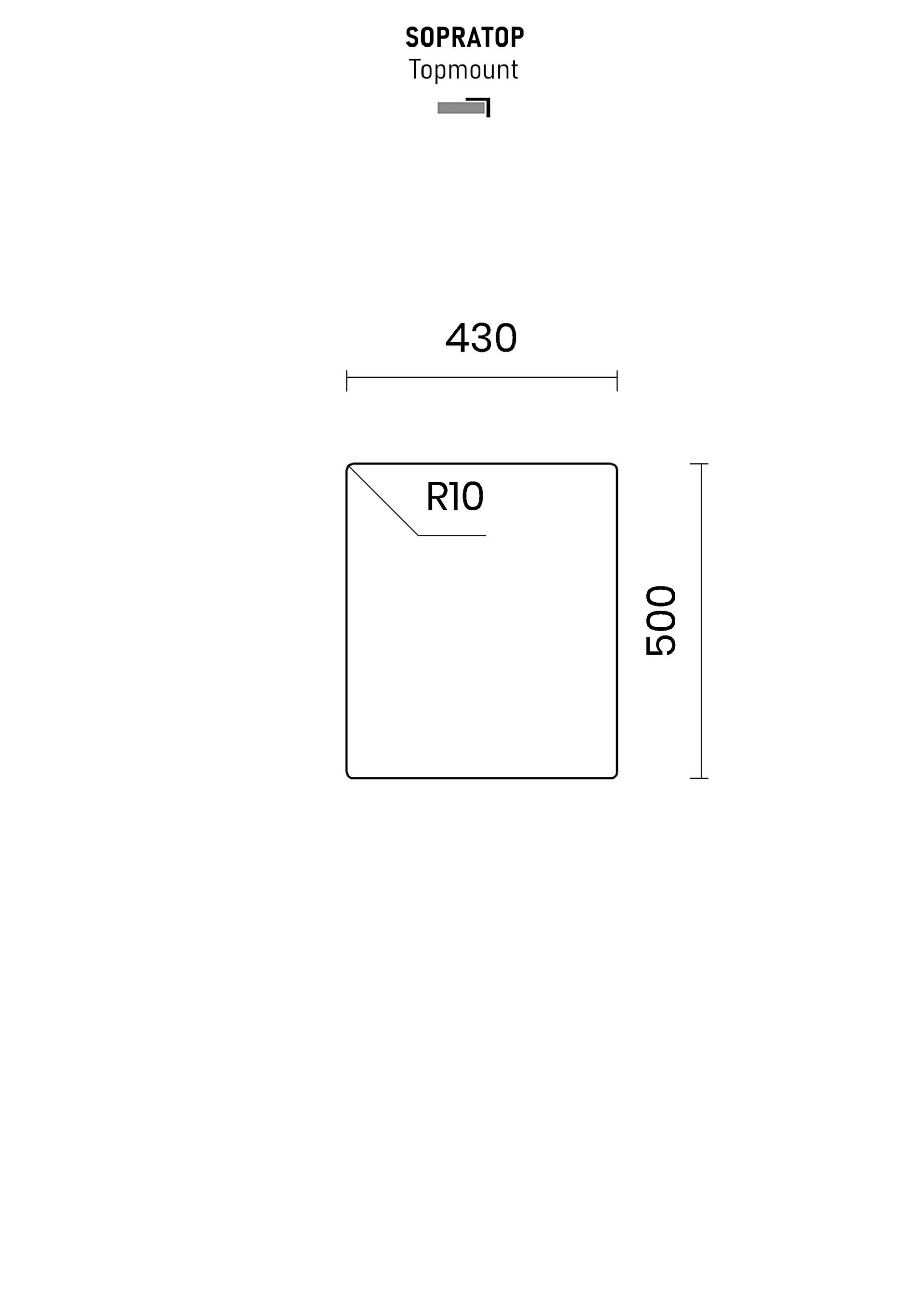

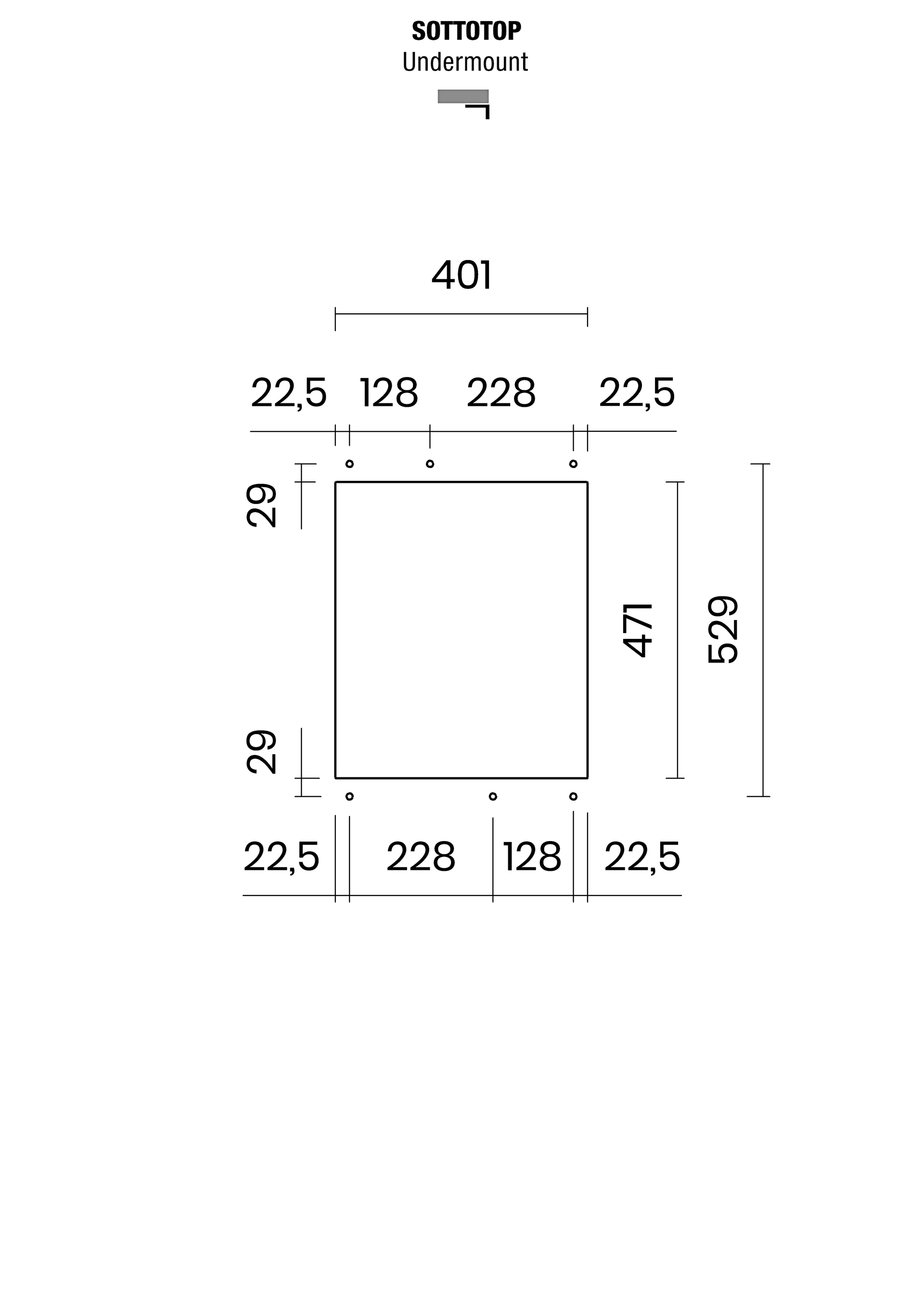

cut-out

downloads

Product sheet

installation sheet

file dxf

Recommended accessories

sink care
