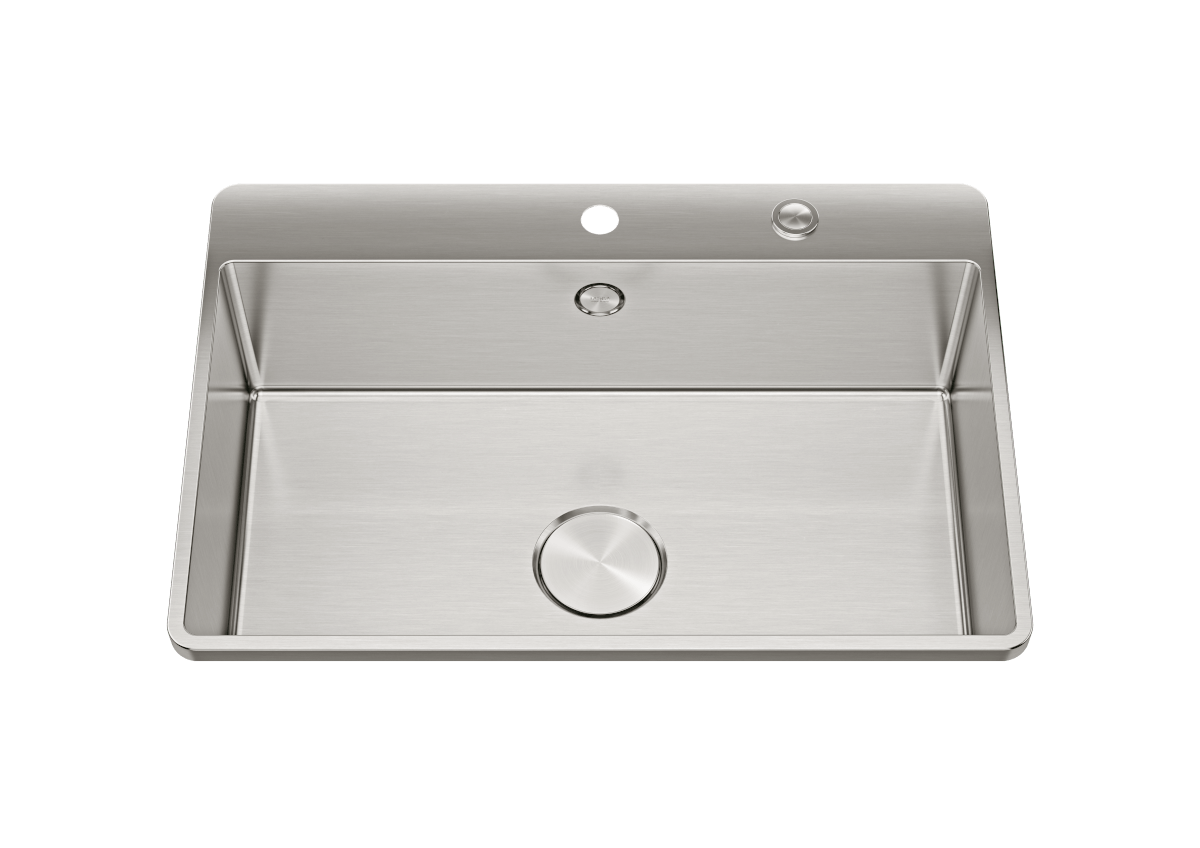

Iris 70 bm

code: IR70BM

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

finish: Satinplus


Base 80 cm

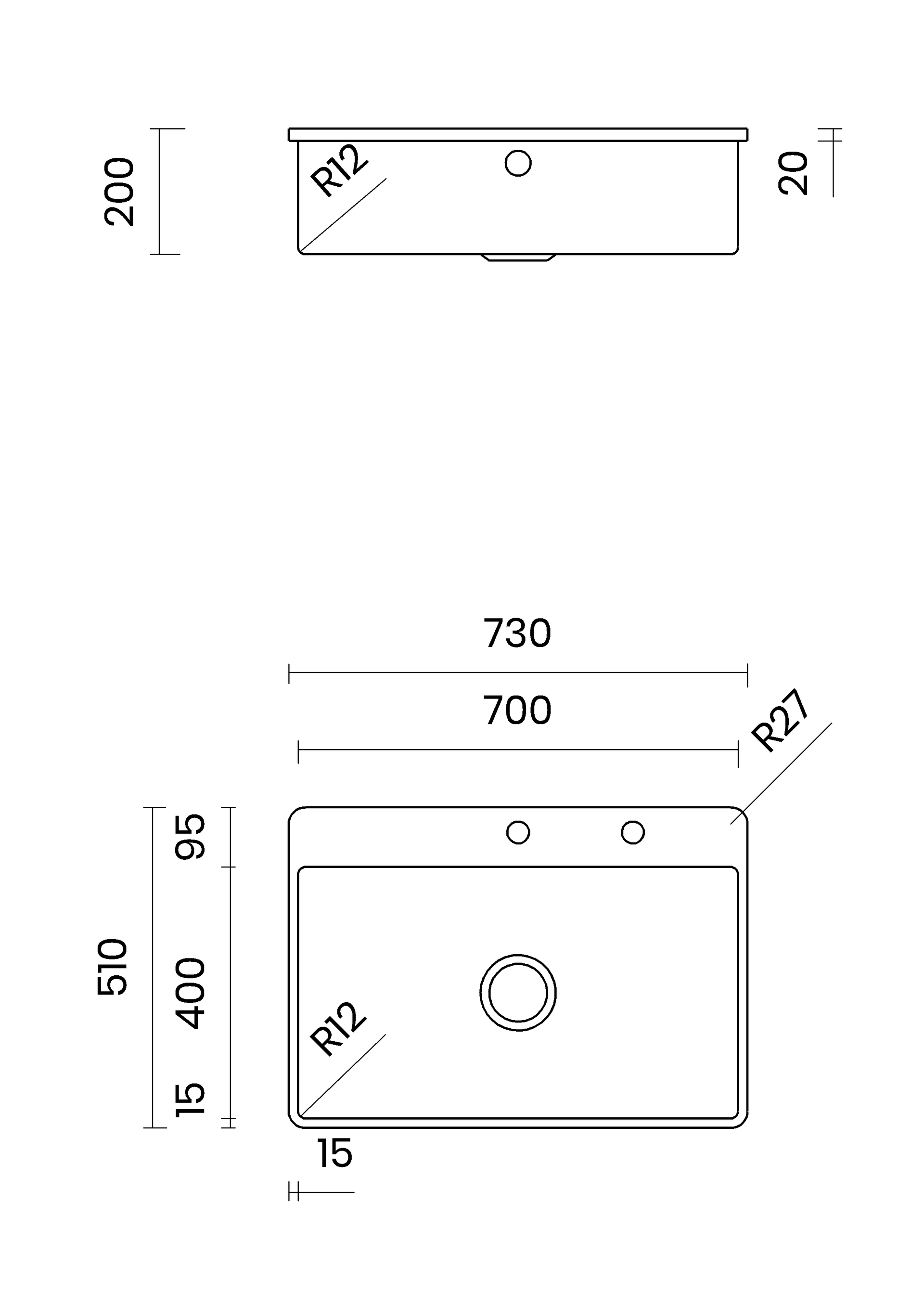

External dimensions 730x510 mm

tub dimensions 700x400 mm

radius 12 mm


overflow: integrated round

waste: automatic Flick Ø 114 mm in satin stainless steel

siphon included


installation: overtop


Packaging size: 80x56x30 cm

weight: 11.5 kg

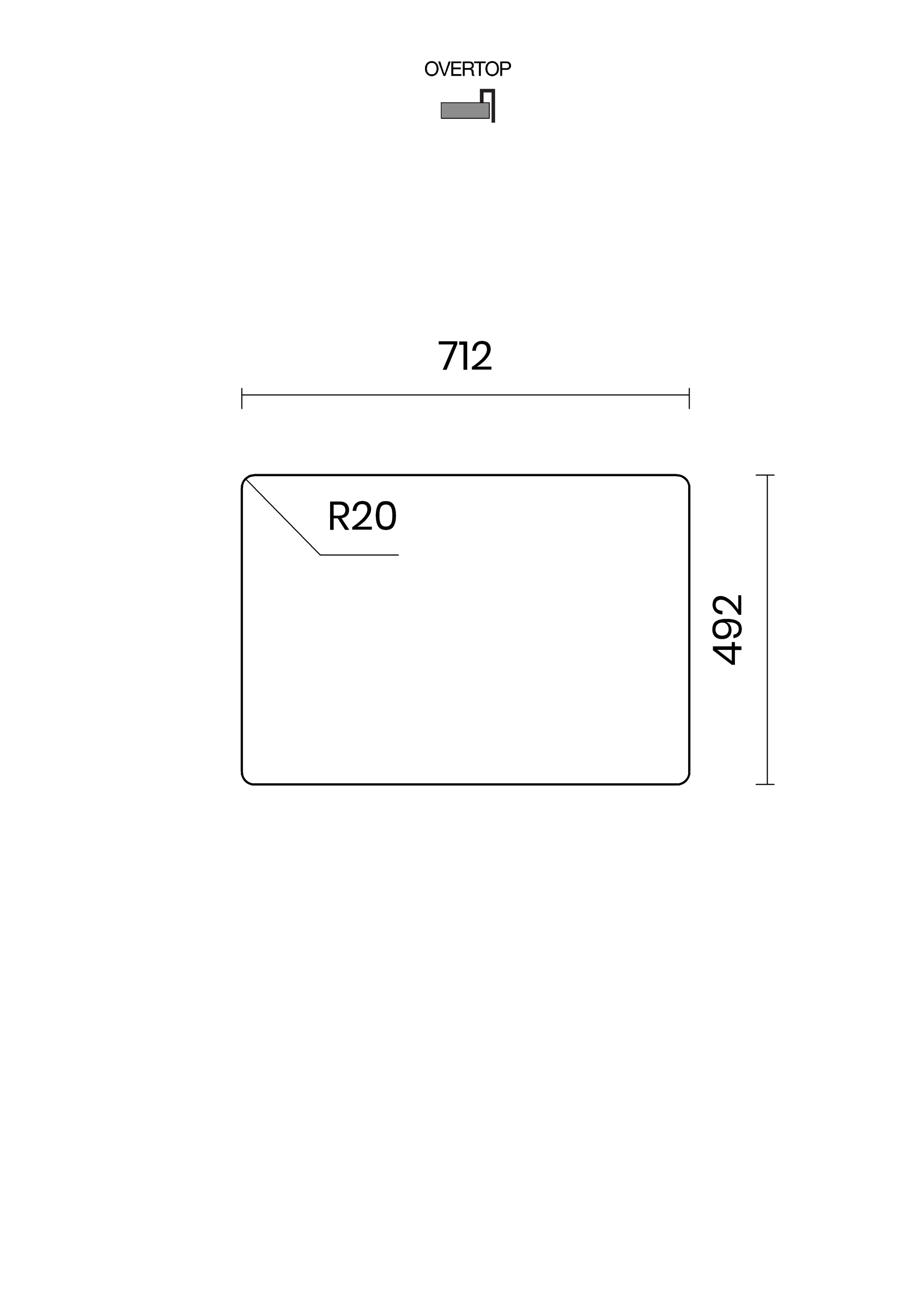

cut-out

downloads

Product sheet

installation sheet

file dxf
