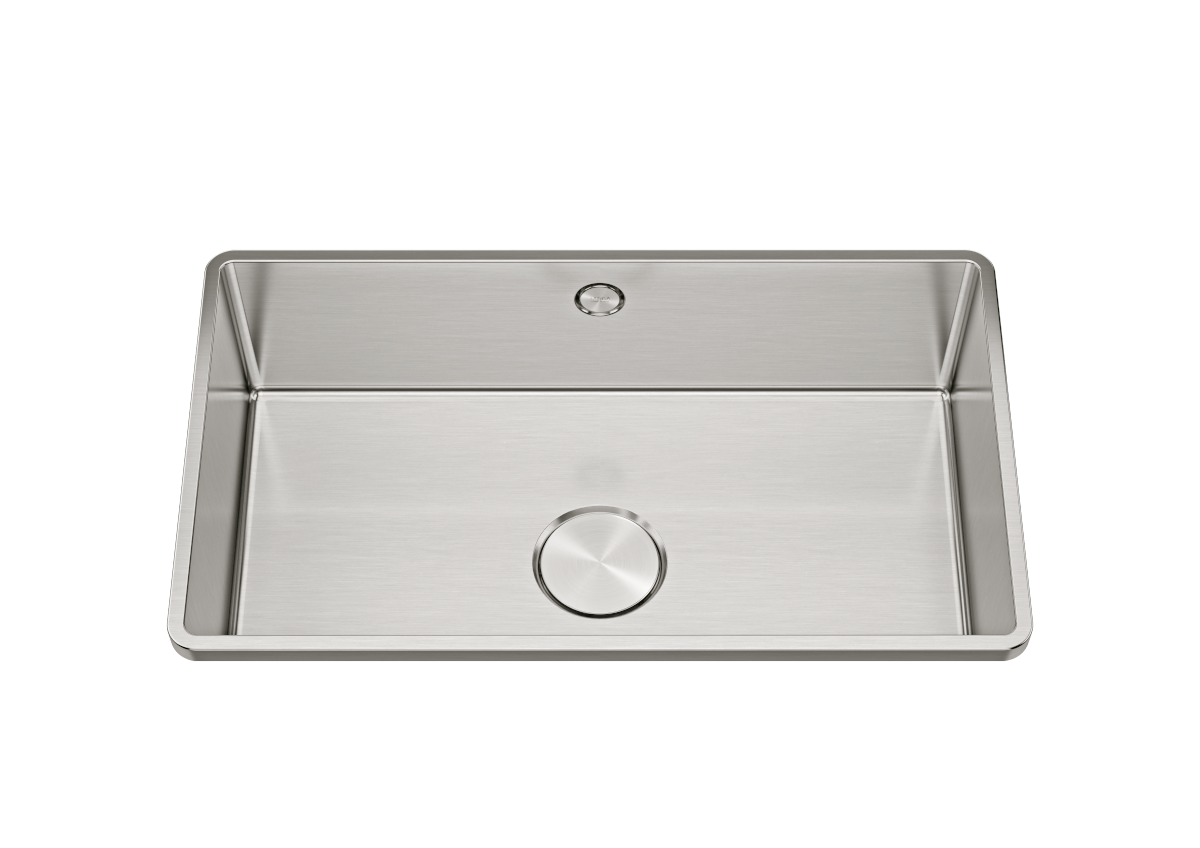

Iris 70

code: IR70

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

finish: Satinplus


Base 80 cm

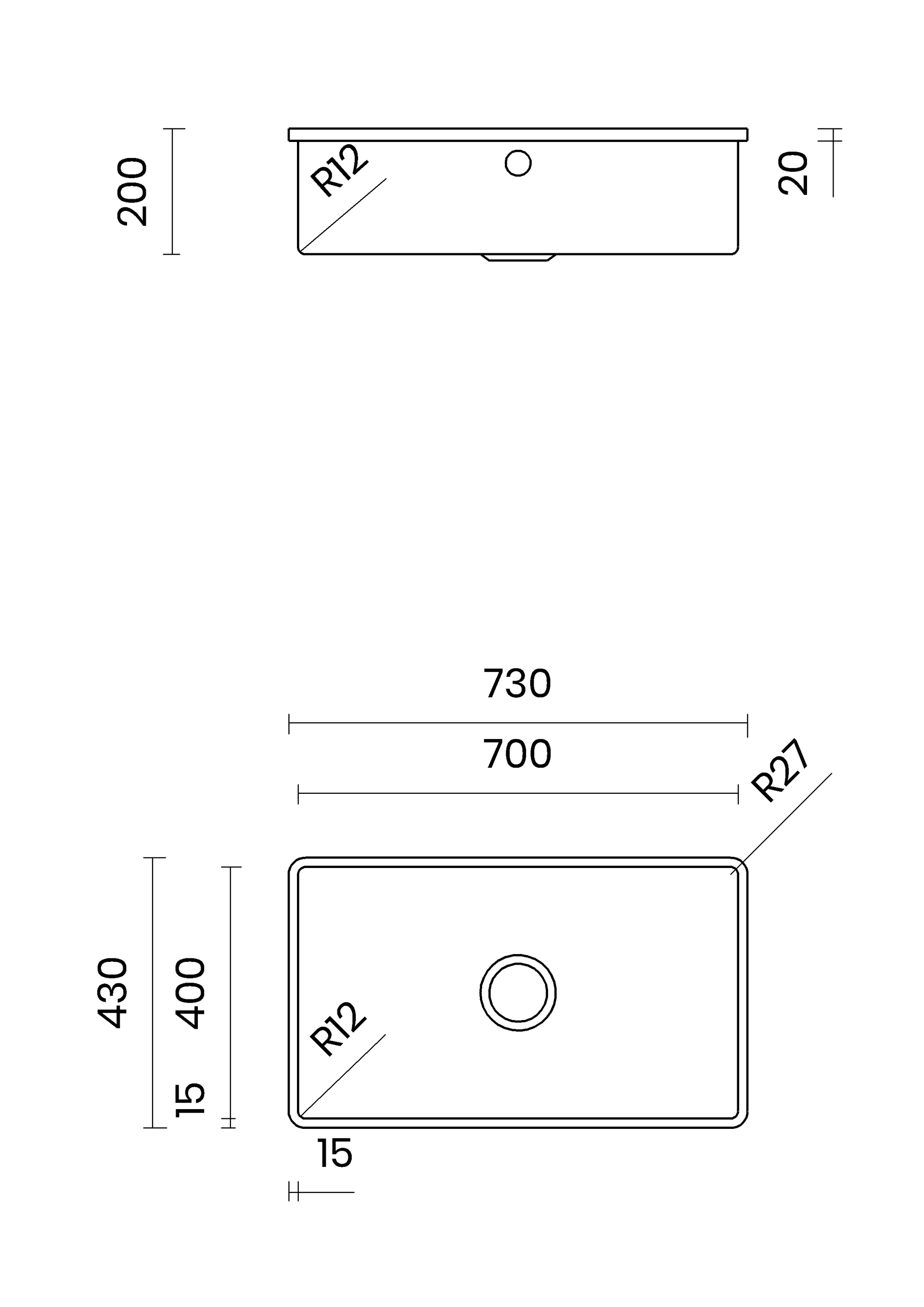

External dimensions 730x430 mm

tub dimensions 700x400 mm

radius 12 mm


overflow: integrated round

waste: Ø 114 mm in satin stainless steel

siphon included


installation: overtop


Packaging size: 80x50x30 cm

weight: 10.2 kg

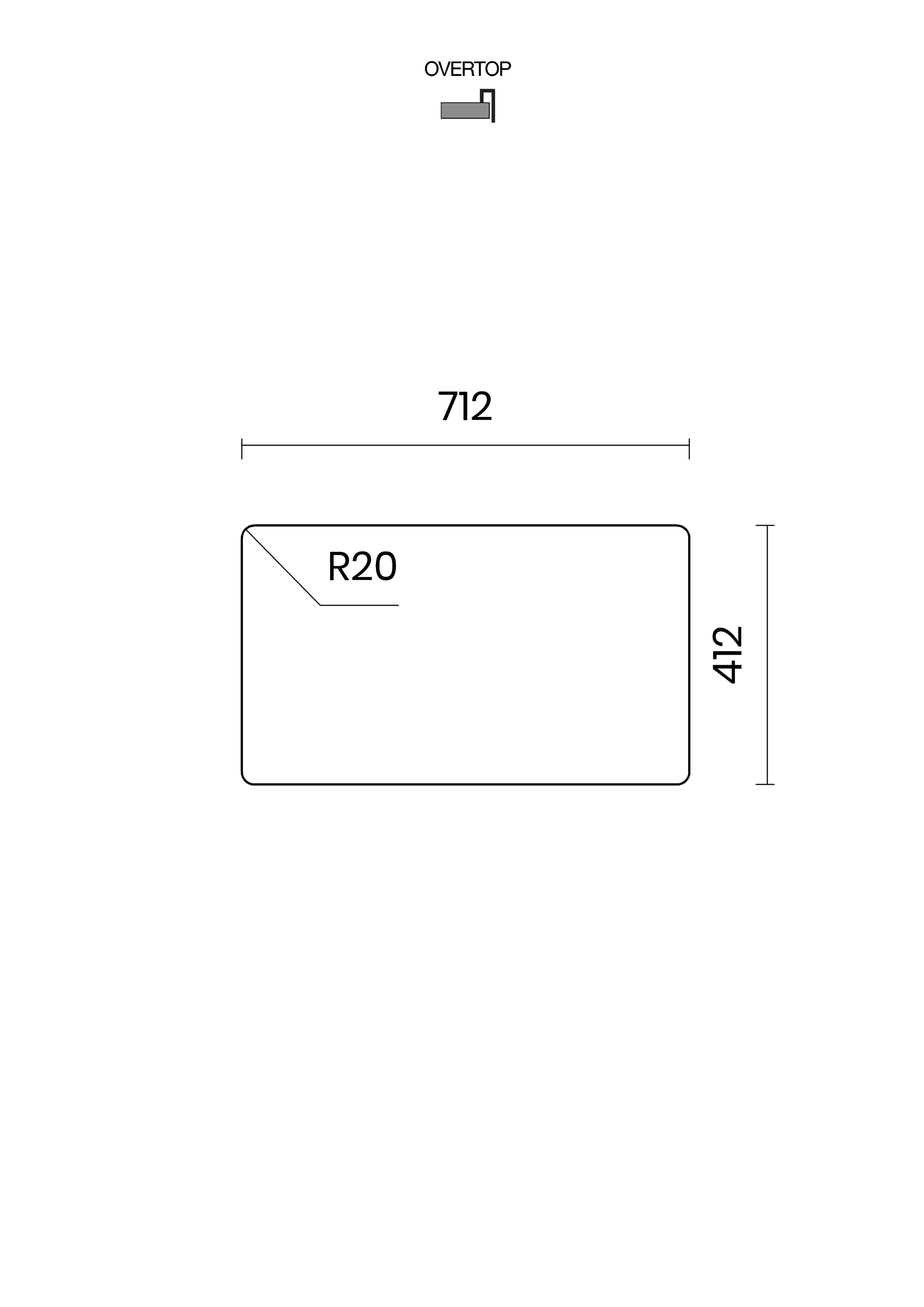

cut-out

downloads

Product sheet

installation sheet

file dxf

Recommended accessories

sink care
