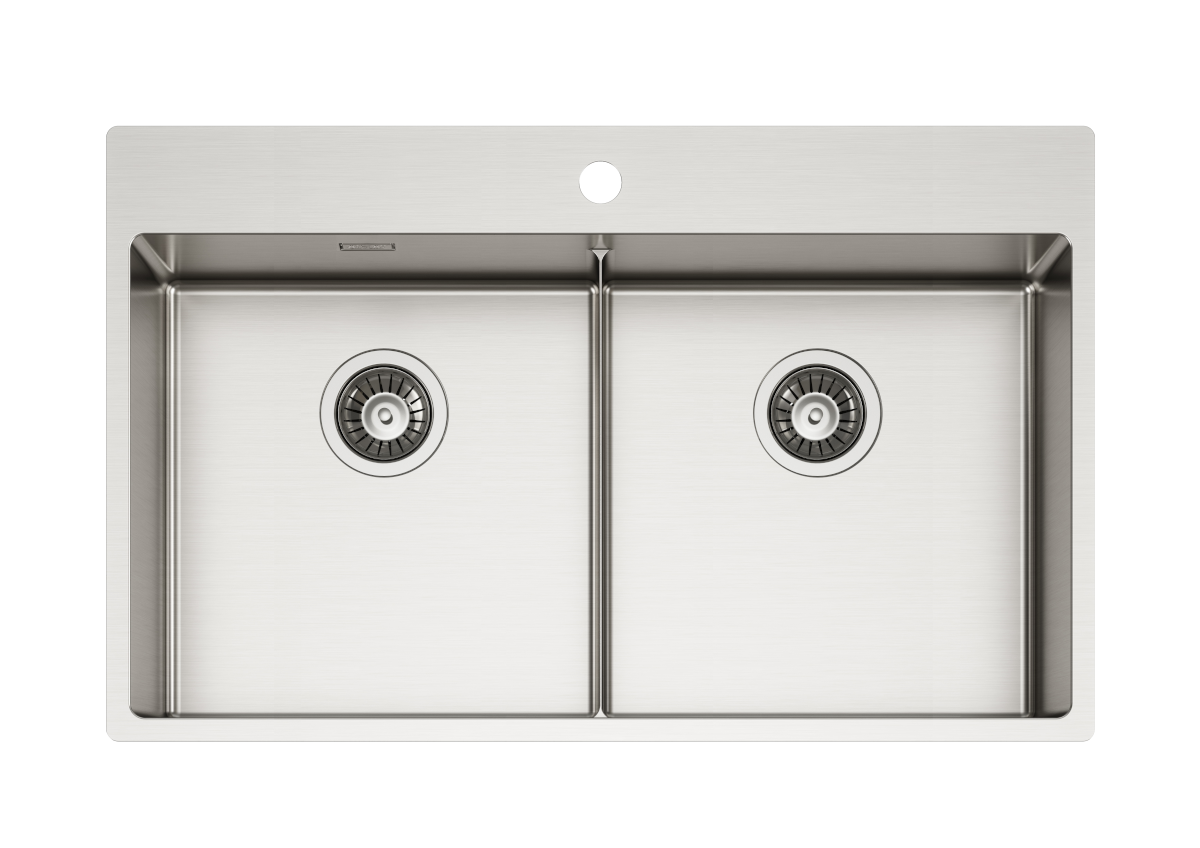

Icon 85 IF

code: IC85IF

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 90 cm

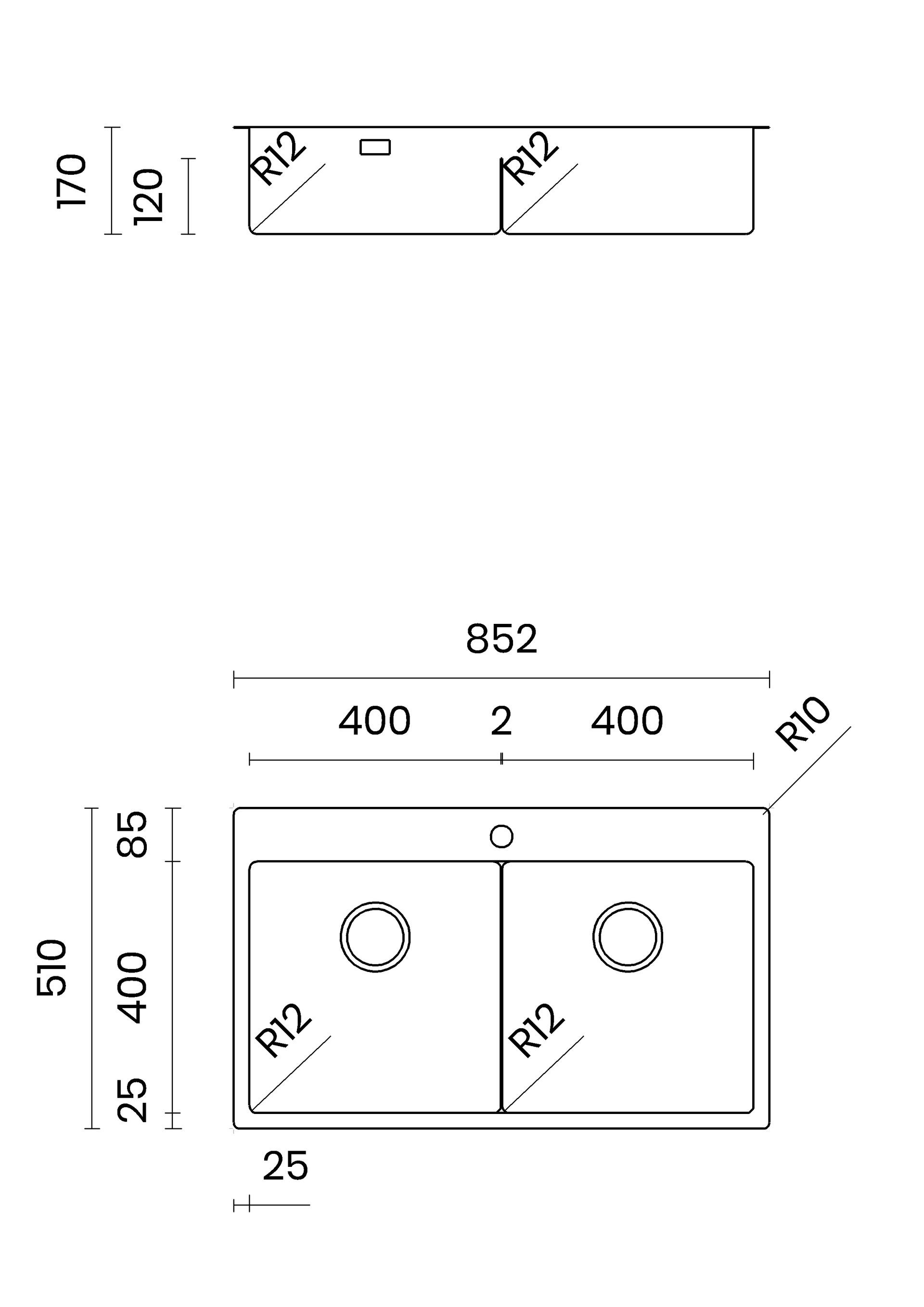

External dimensions 852x510 mm

tub dimensions 2 x 400x400 mm

radius 12 mm


overflow: integrated

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: over-top / flush-top


Packaging size: 90x56x25 cm

weight: 14 kg

the sink is already equipped with a central hole Ø 35 mm. Any additional holes must be specified when ordering

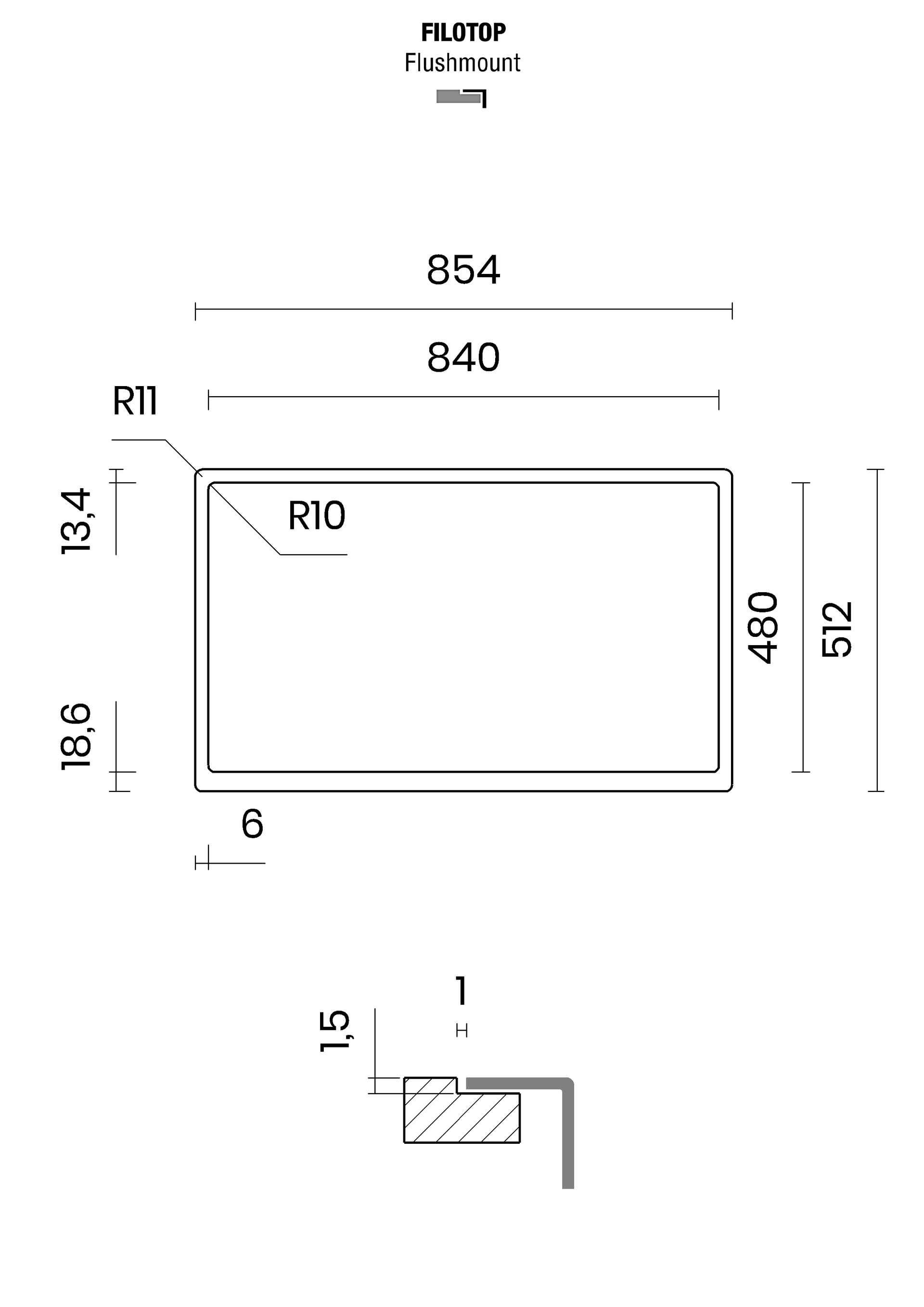

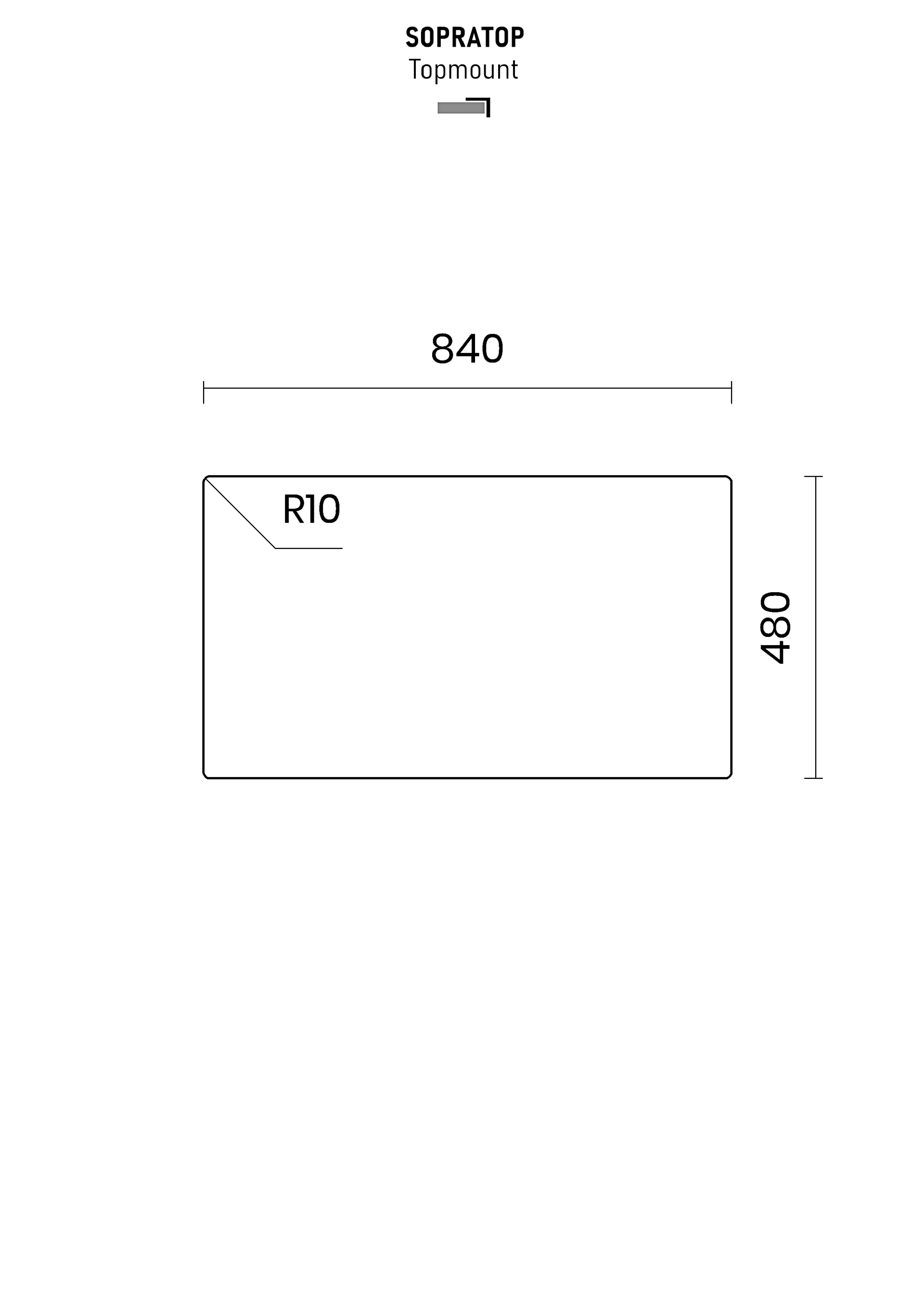

cut-out

downloads

Product sheet

installation sheet

file dxf
