Icon 84

code: IC84F

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 90 cm

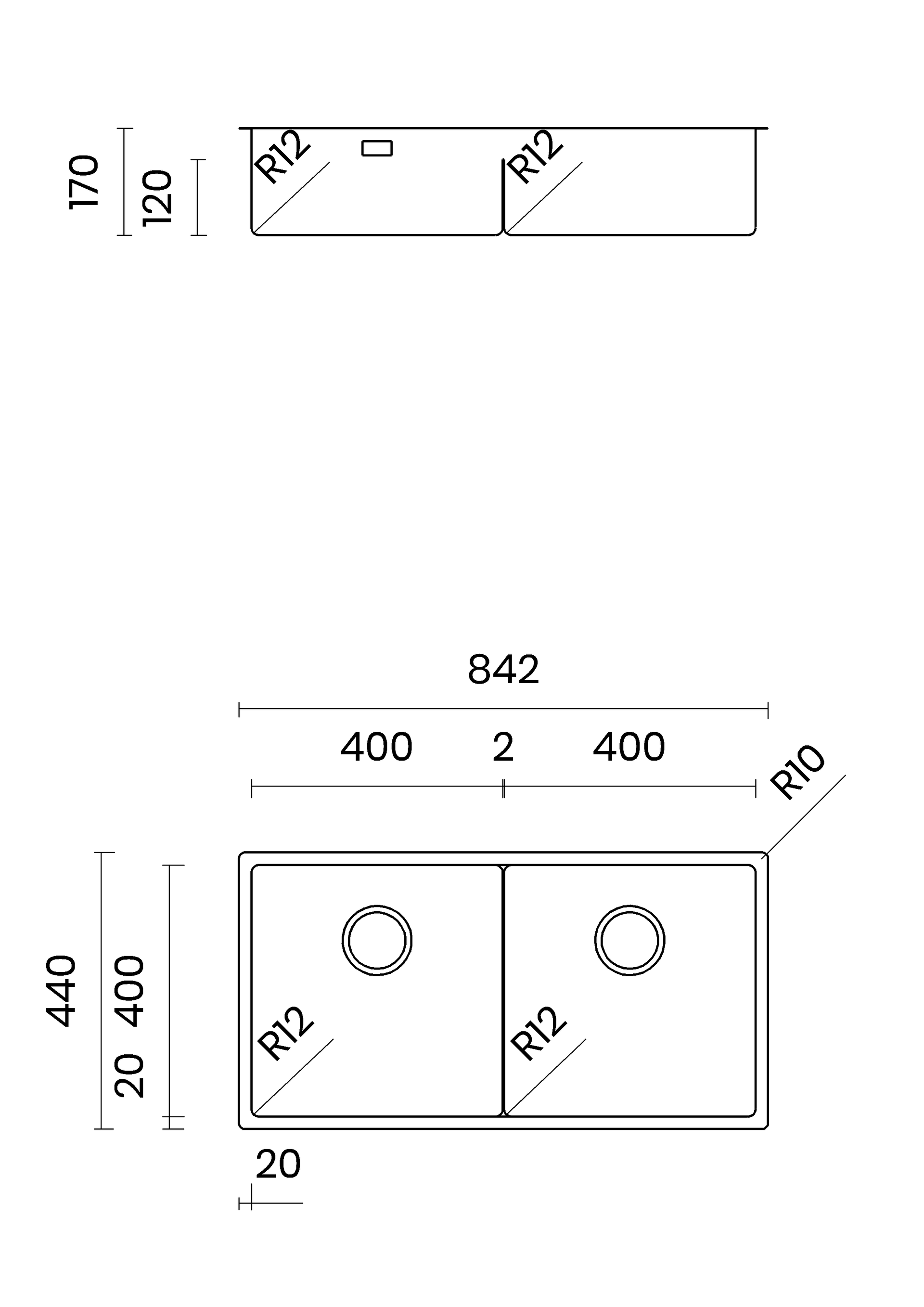

External dimensions 842x440 mm

tub dimensions 2 x 400x400 mm

radius 12 mm


overflow: integrated

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: above-top / flush-mount / under-top


Packaging size: 90x50x25 cm

weight: 12 kg

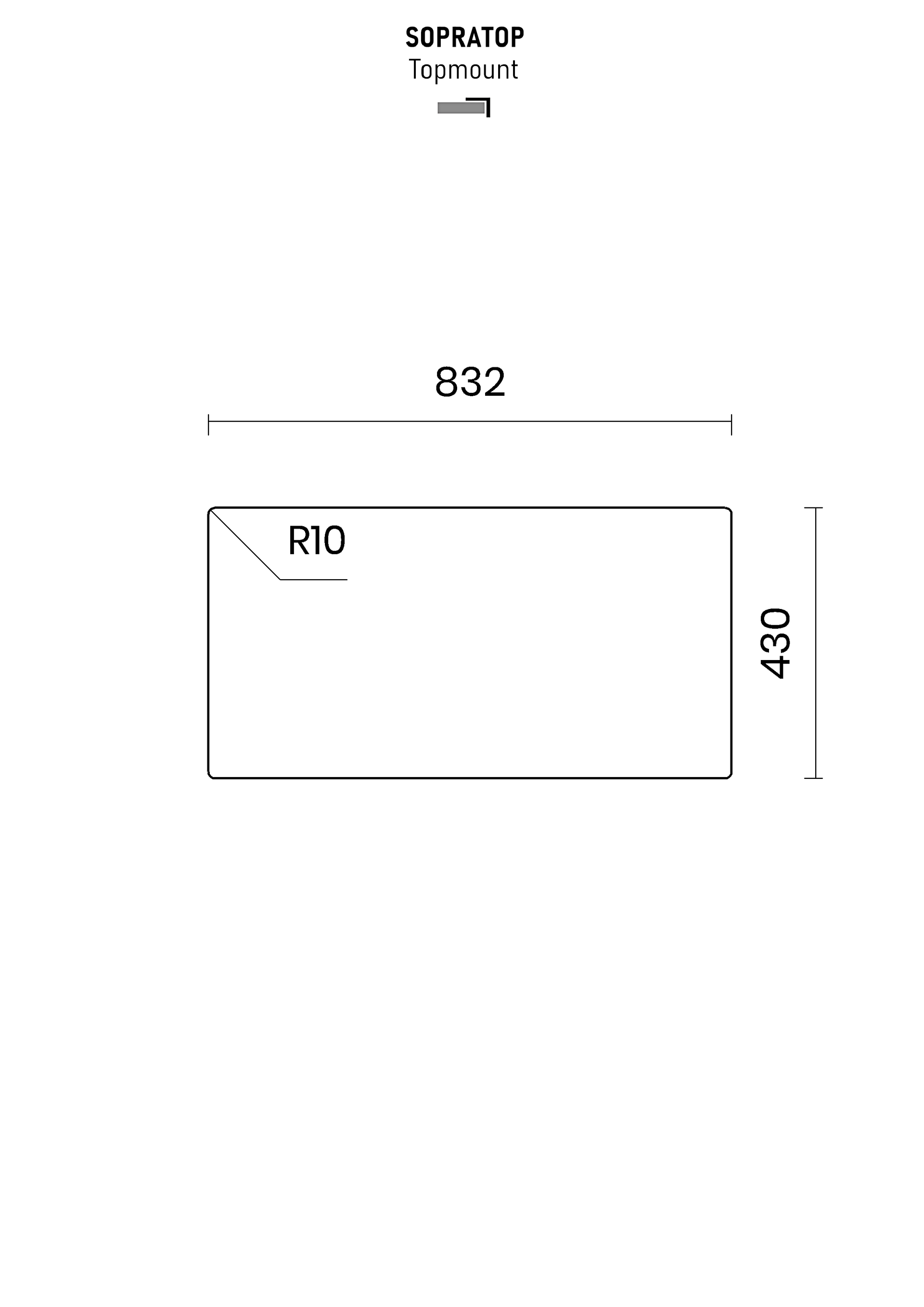

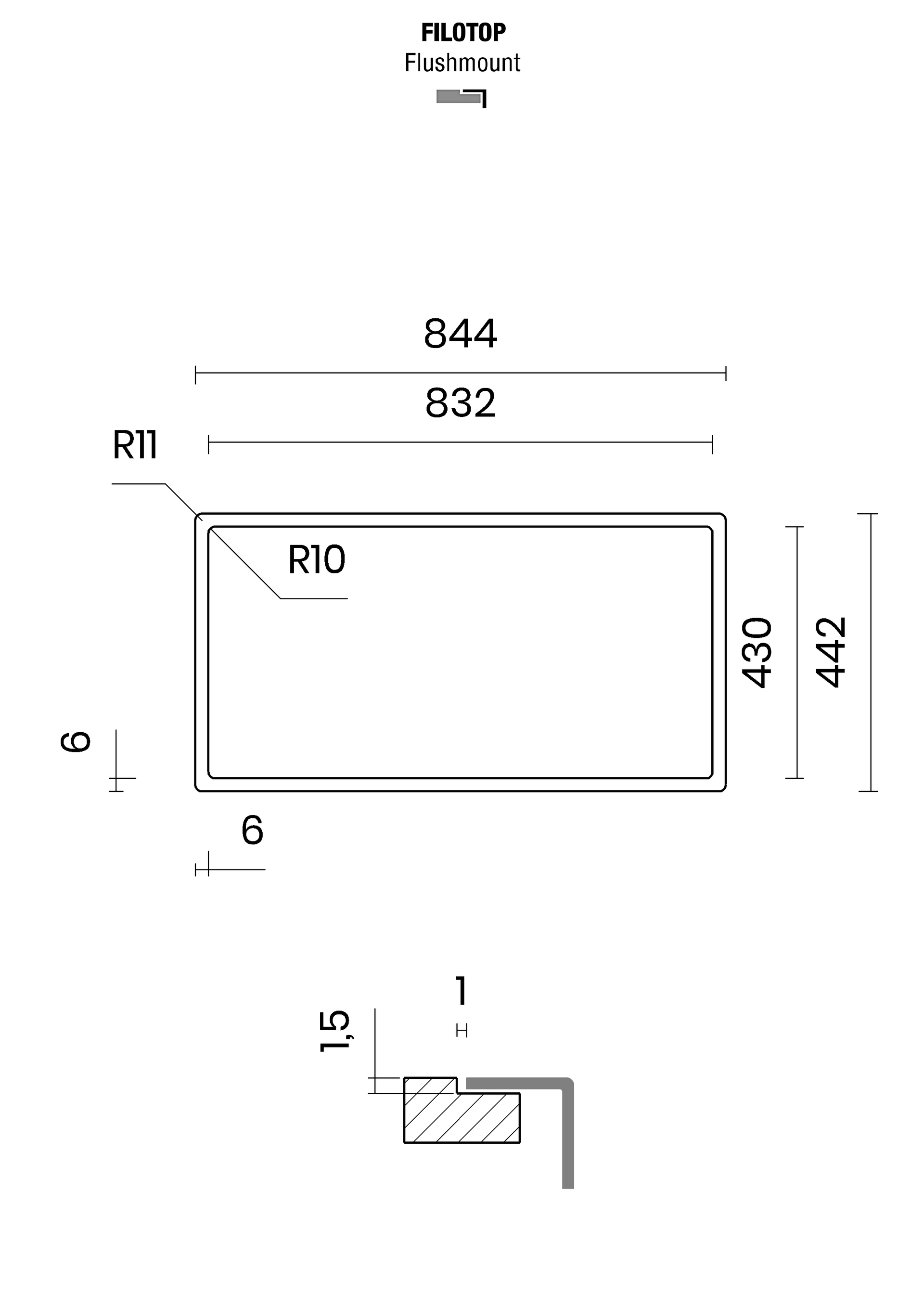

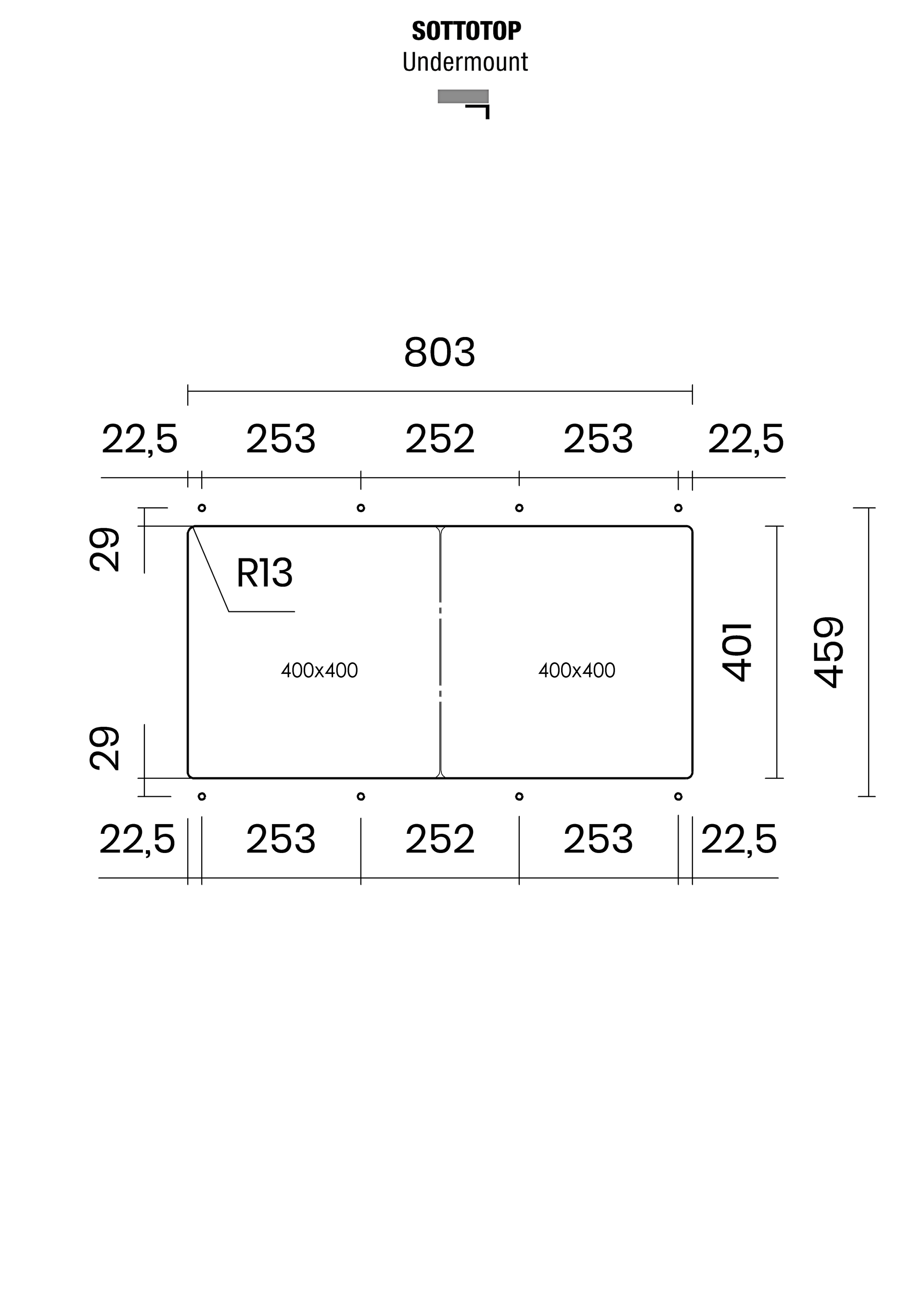

cut-out

downloads

Product sheet

installation sheet

file dxf

Recommended accessories

sink care
