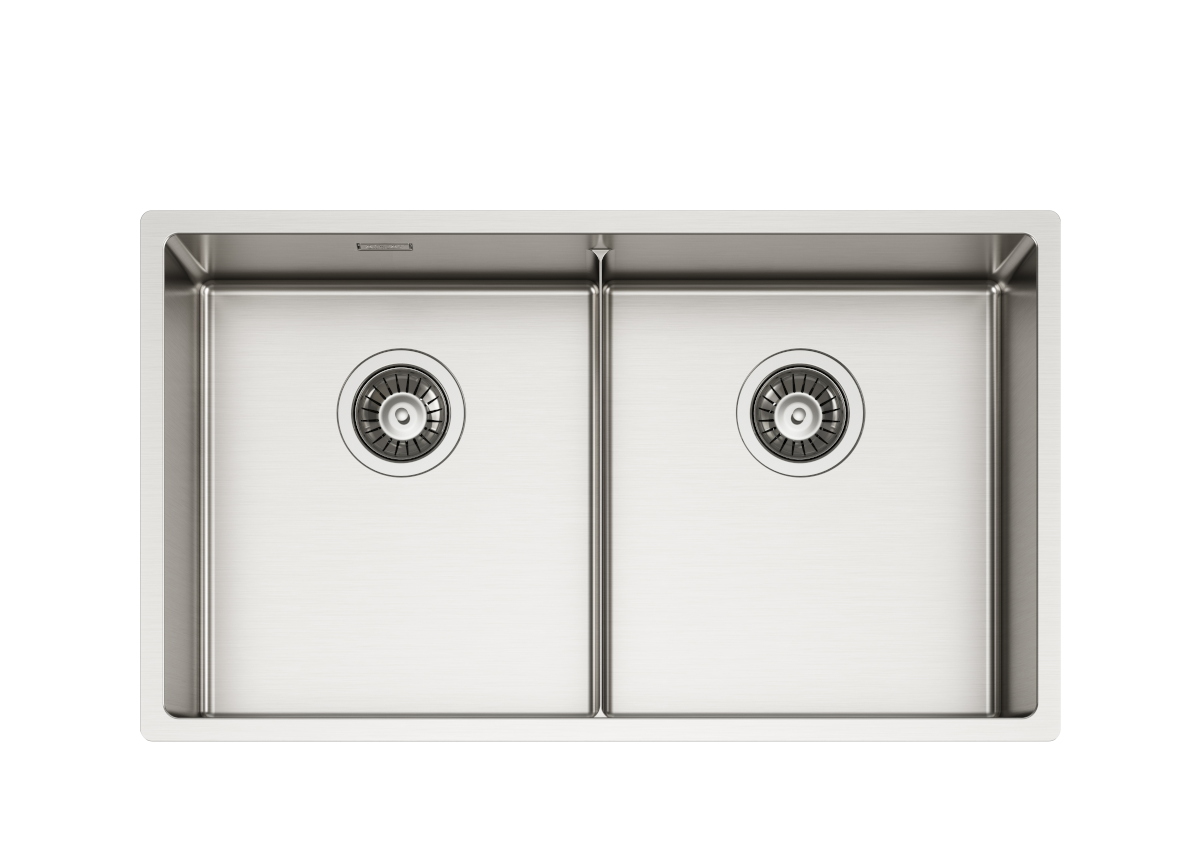

Icon 76

code: IC76F

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

Finish: SatinPlus


Base 90 cm

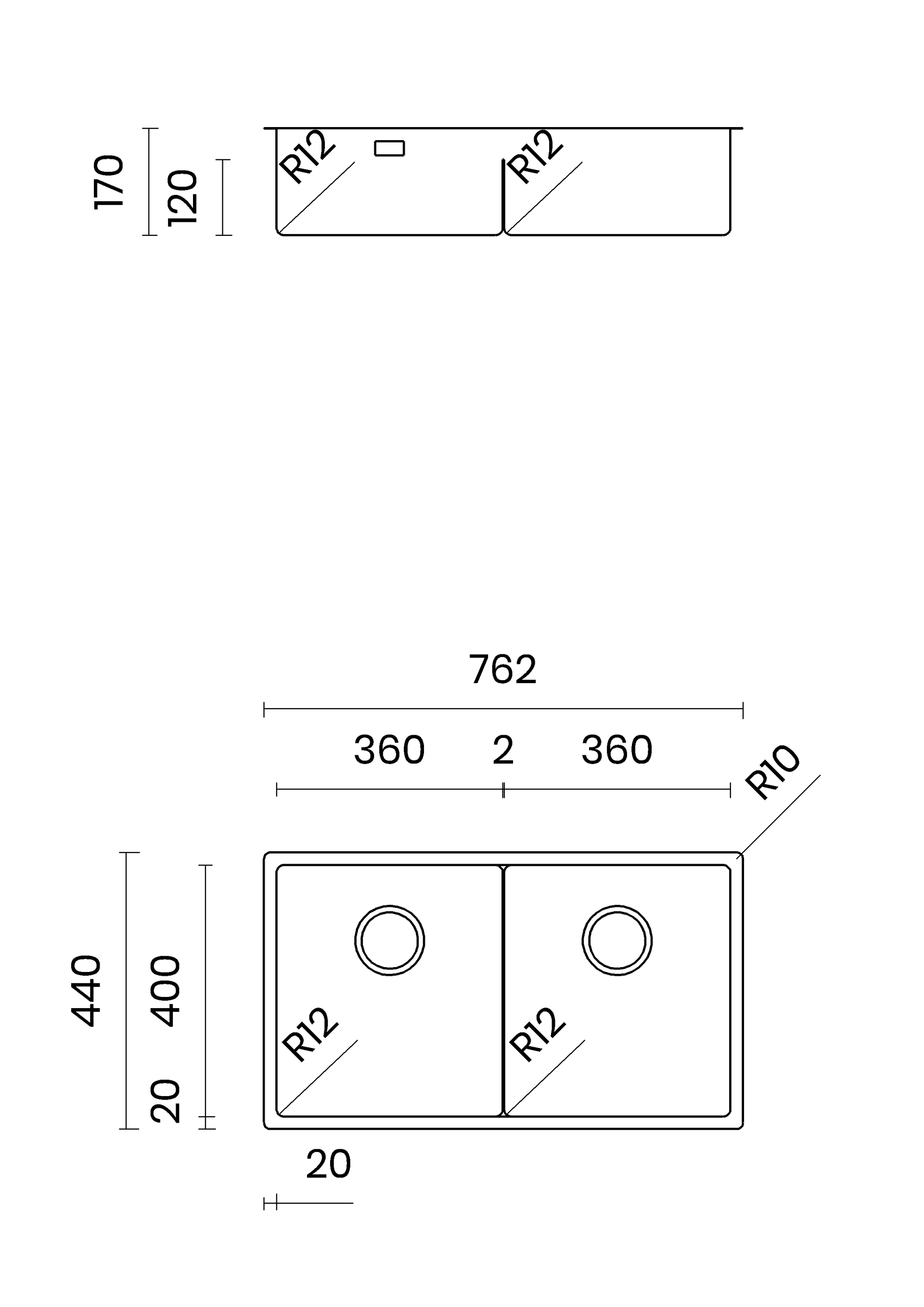

External dimensions 762x440 mm

tub dimensions 2 x 360x400 mm

radius 12 mm


overflow: integrated

waste: Ø 114 mm in satin stainless steel

siphon included


Installation: above-top / flush-mount / under-top


Packaging size: 82x50x25 cm

weight: 11 kg

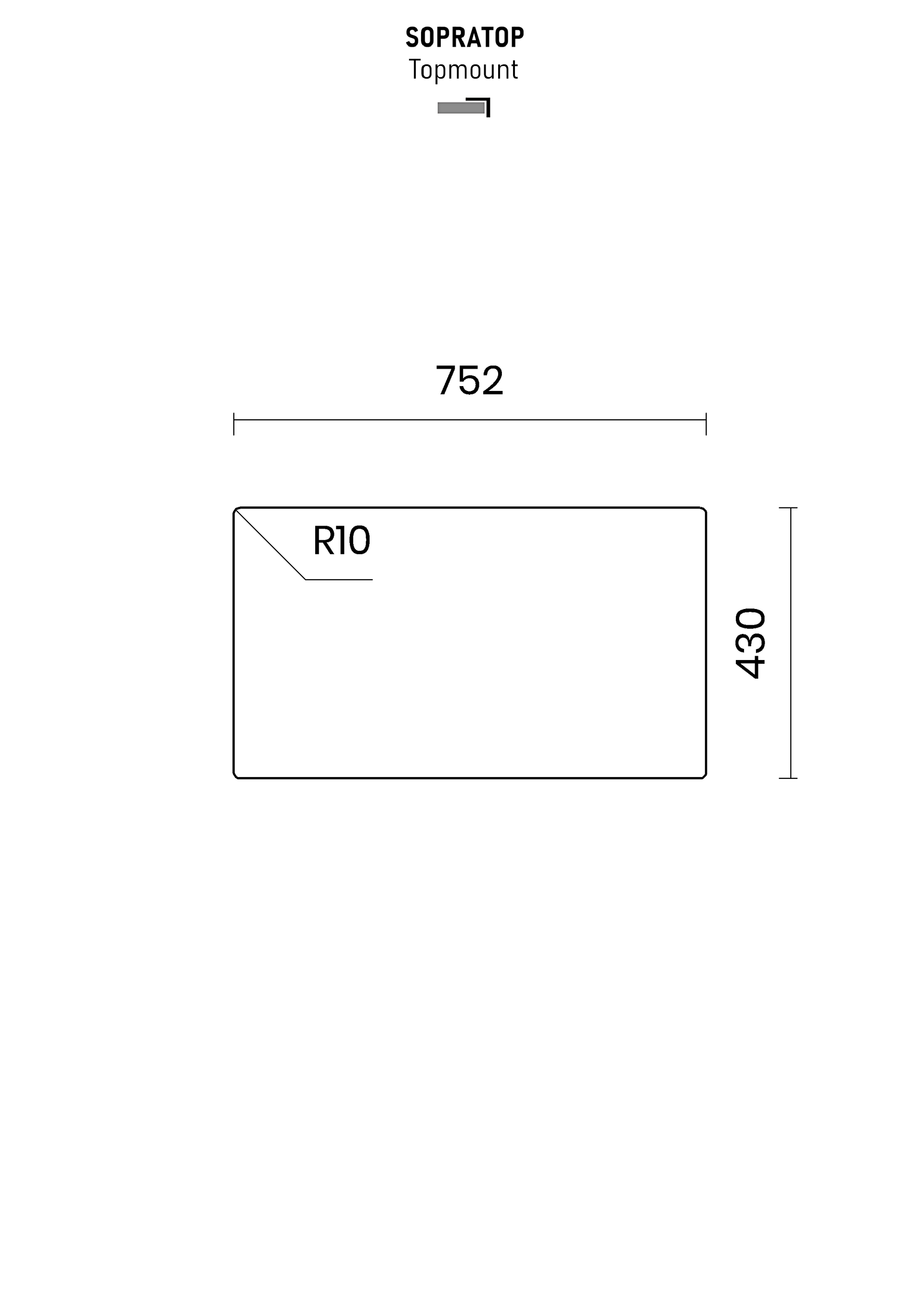

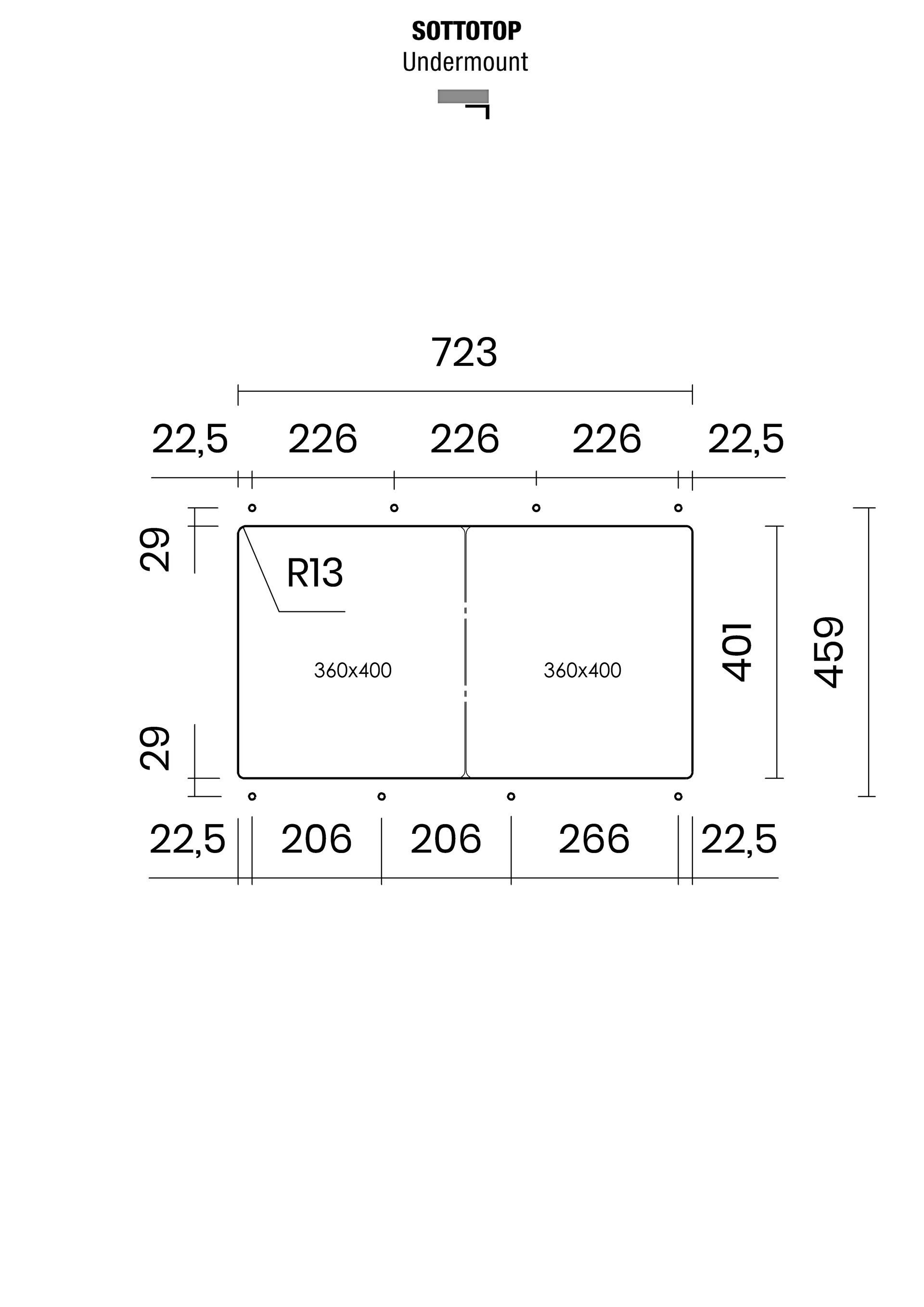

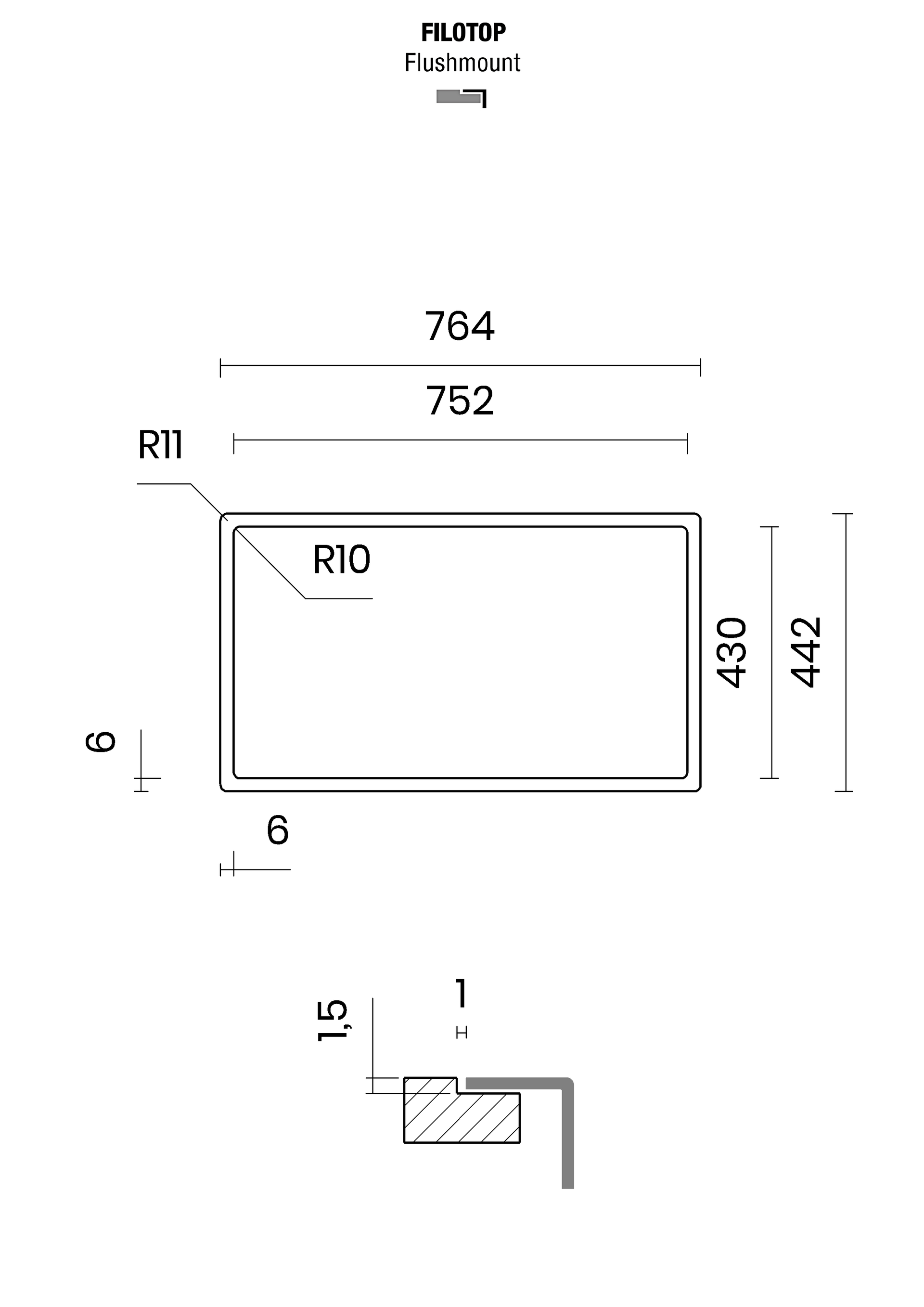

cut-out

downloads

Product sheet

installation sheet

file dxf

Recommended accessories

sink care
