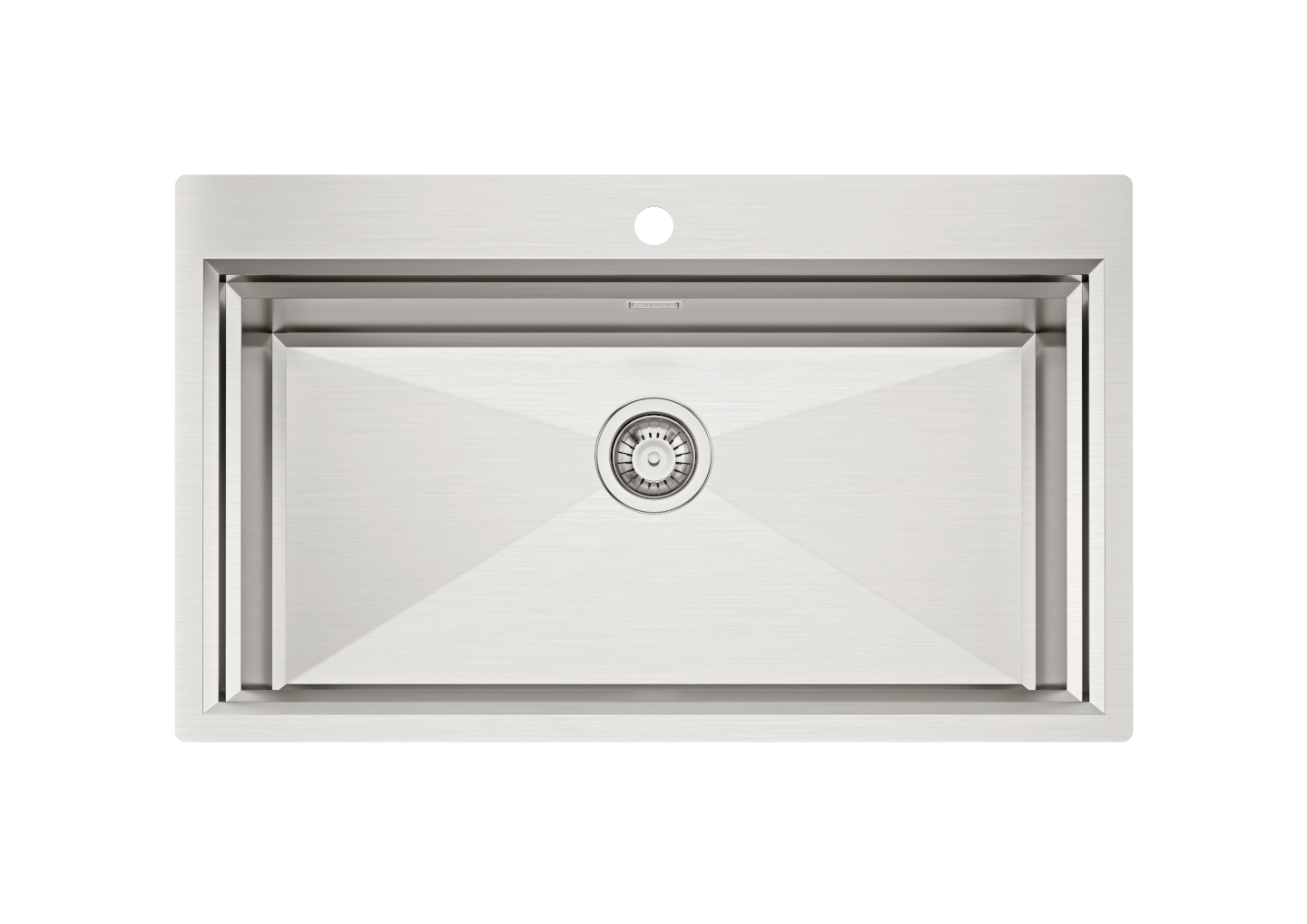

Harmony 86 IF

code: HA86IF

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

finish: Satinplus


Base 90 cm

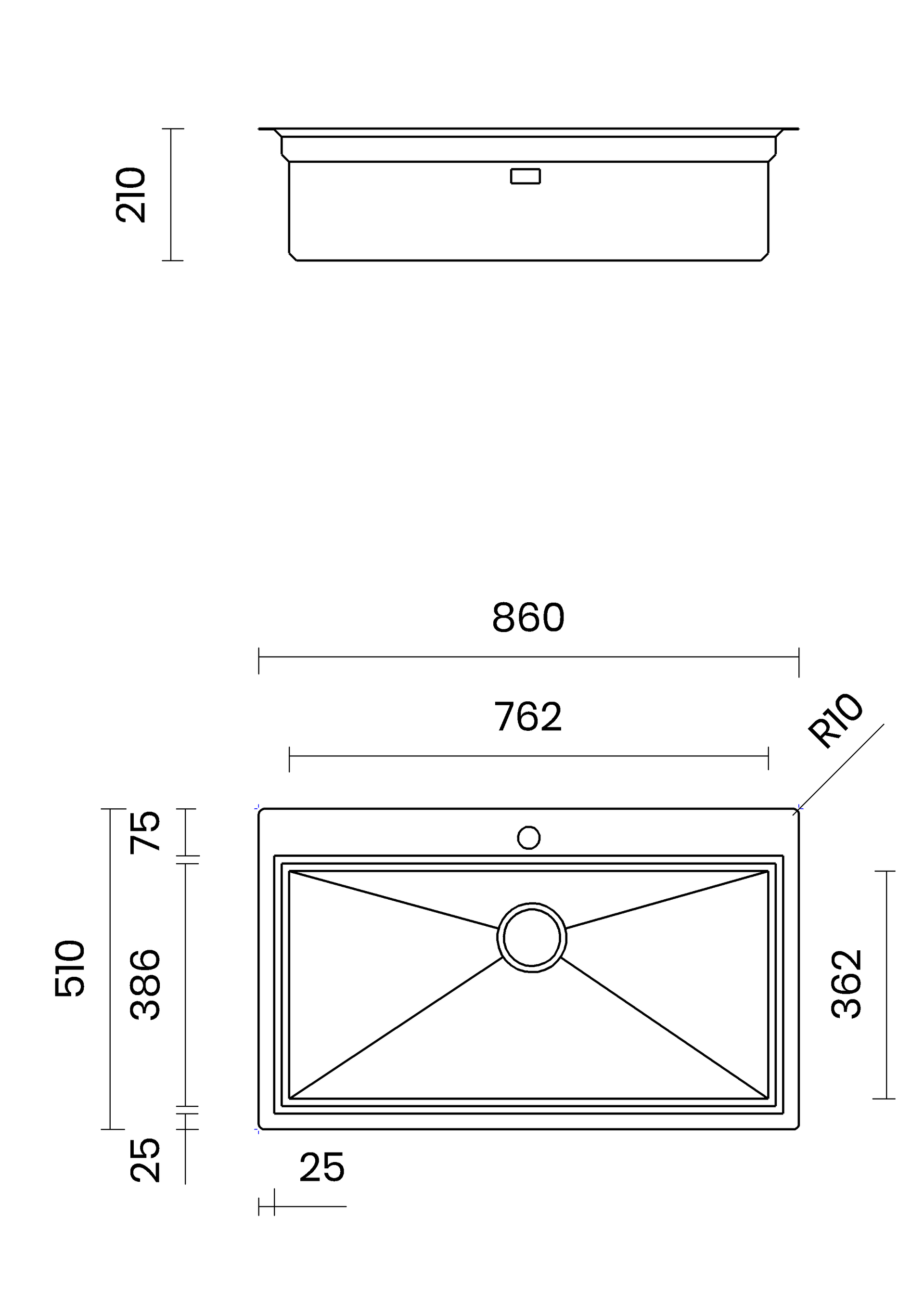

External dimensions 860x510 mm

tub dimensions 762x362 mm

radius 0mm


too full: perimeter

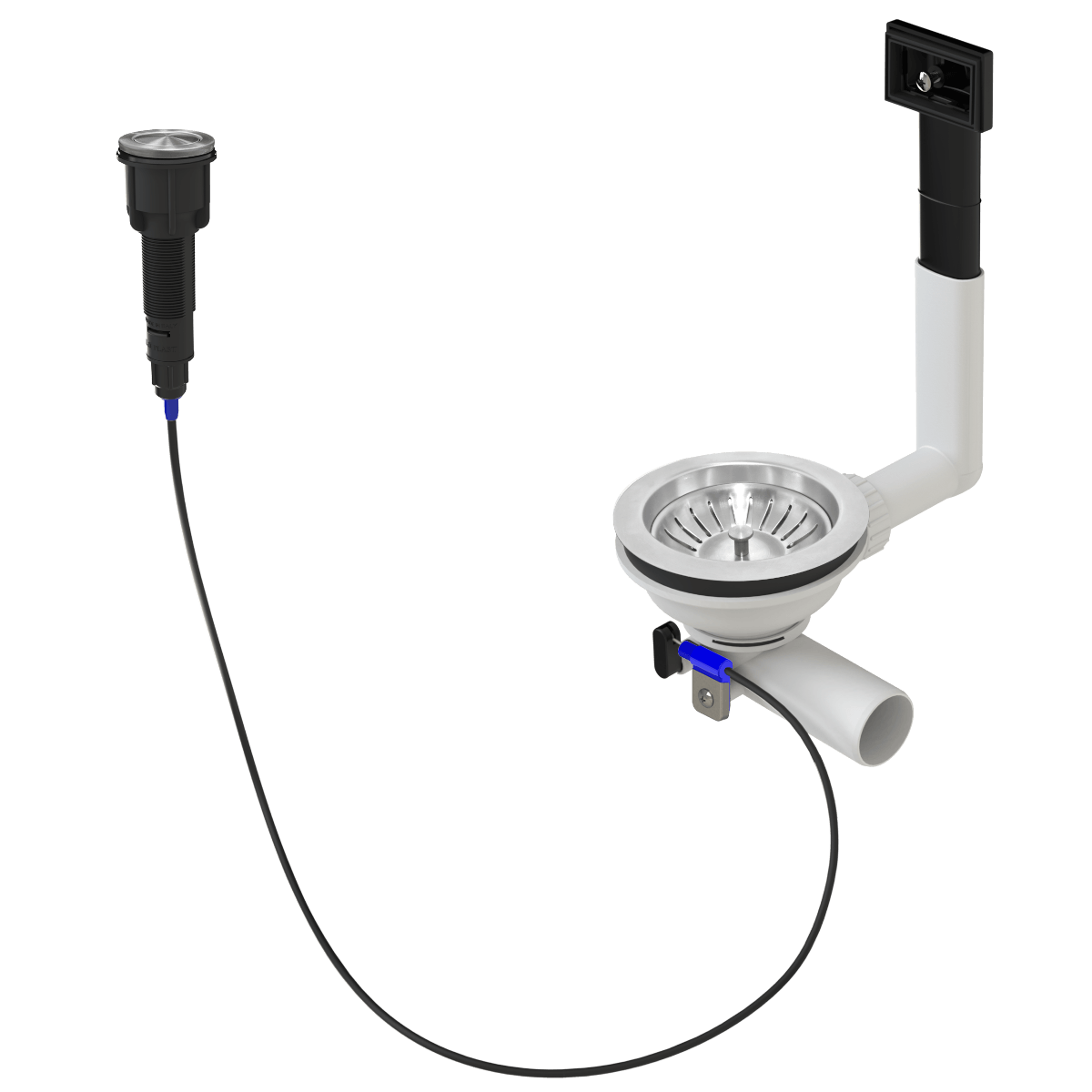

waste: Ø 114 mm in satin stainless steel

siphon included


installation: overtop


Packaging size: 96x57x30 cm

weight: 15.5 kg

the sink is already equipped with a central hole Ø 35 mm. Any additional holes must be specified when ordering

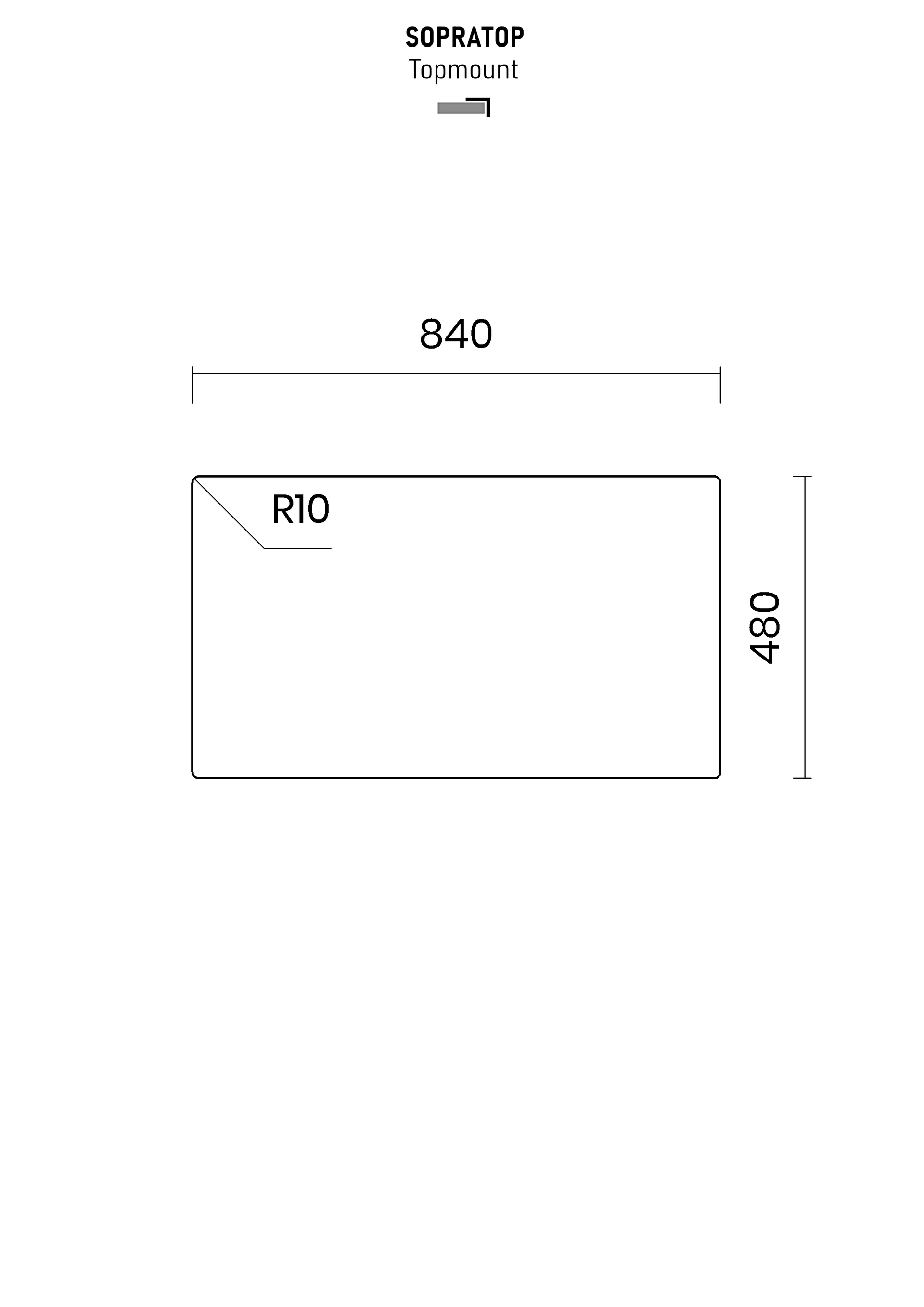

cut-out

downloads

Product sheet

installation sheet

file dxf

Recommended accessories

sliding tray

code 280.hr
data sheet

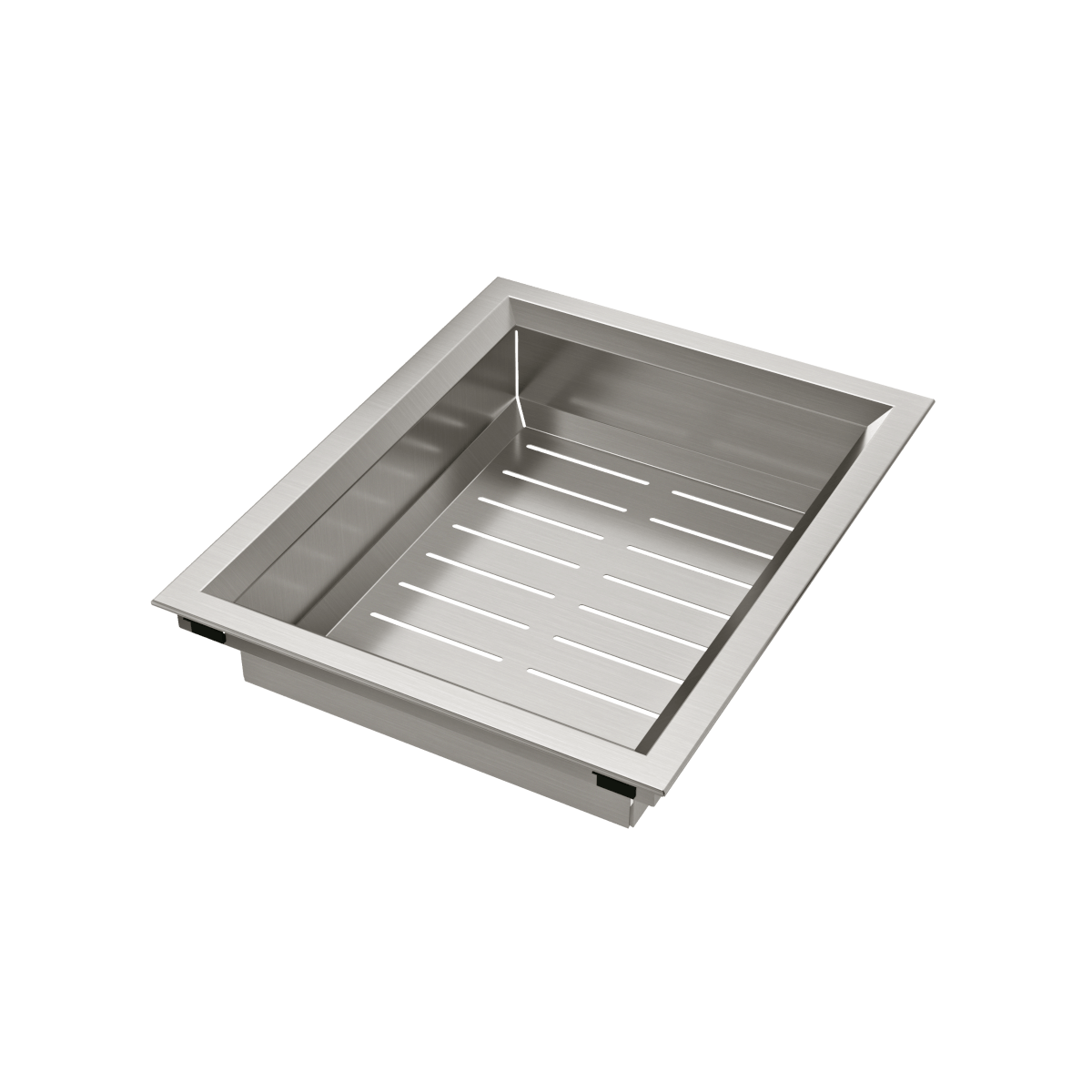

Stainless steel drip tray with sliding grid

code 280.hb
data sheet

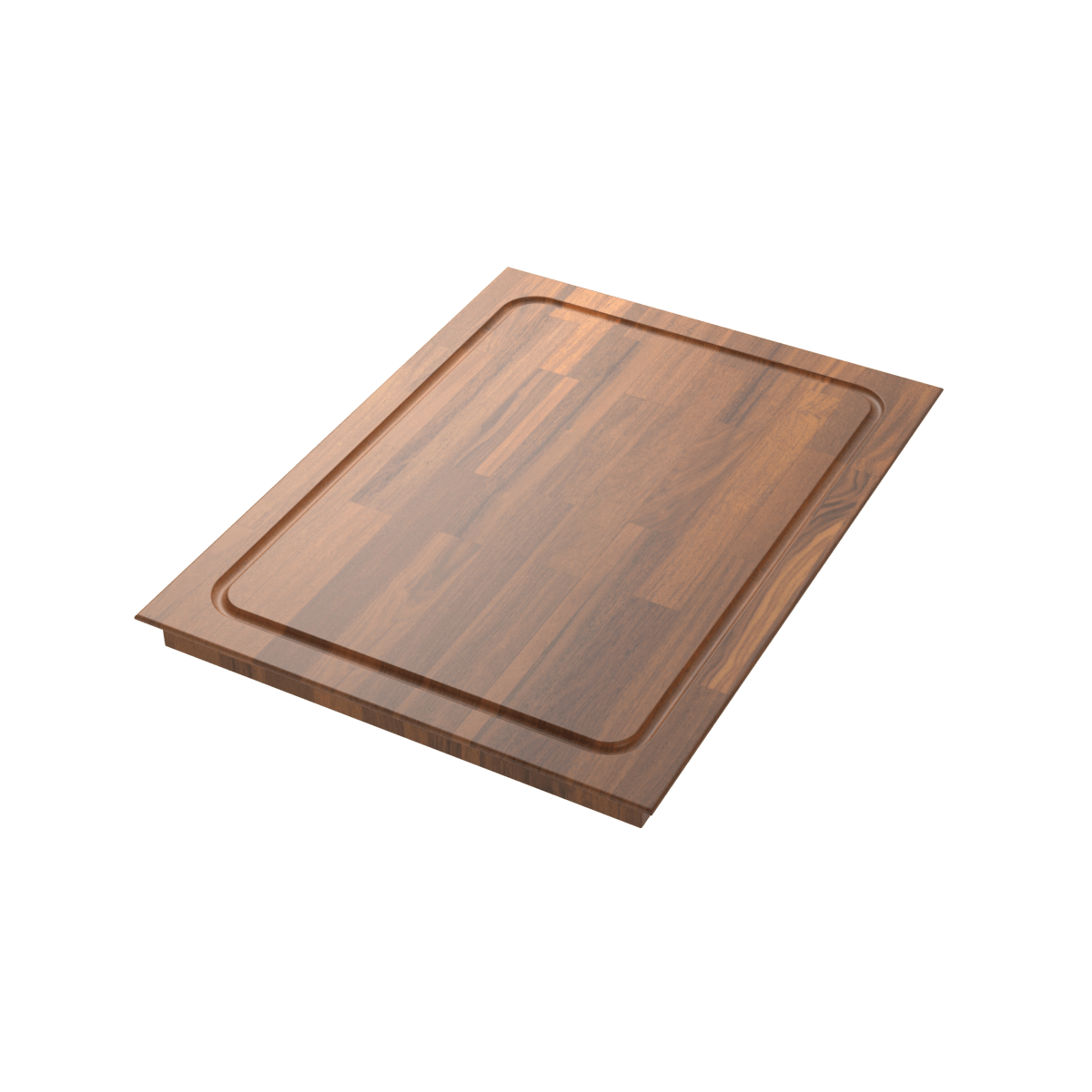

sliding iroko cutting board

code 290.hi
data sheet

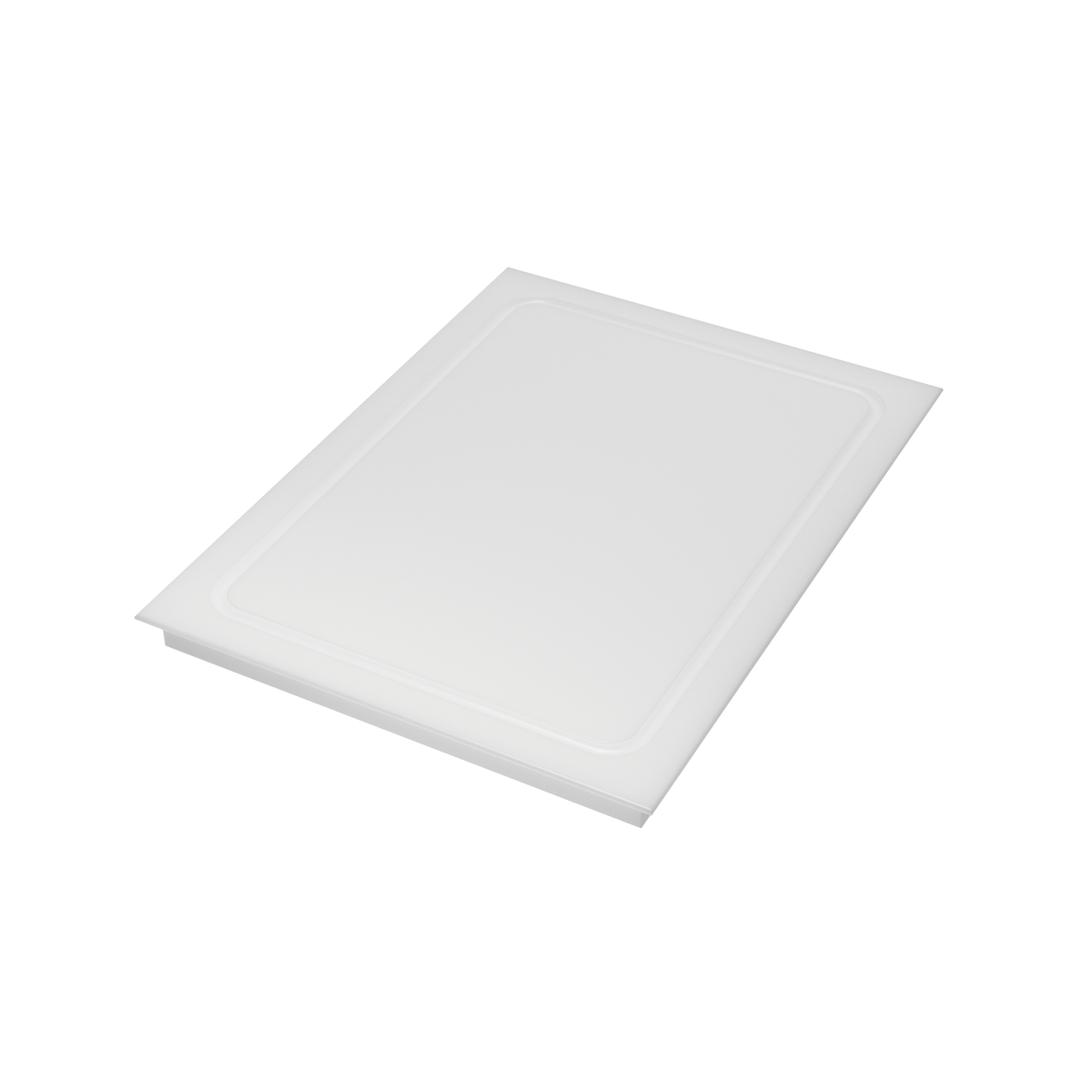

white sliding cutting board

code 285.hw
data sheet

sink care
