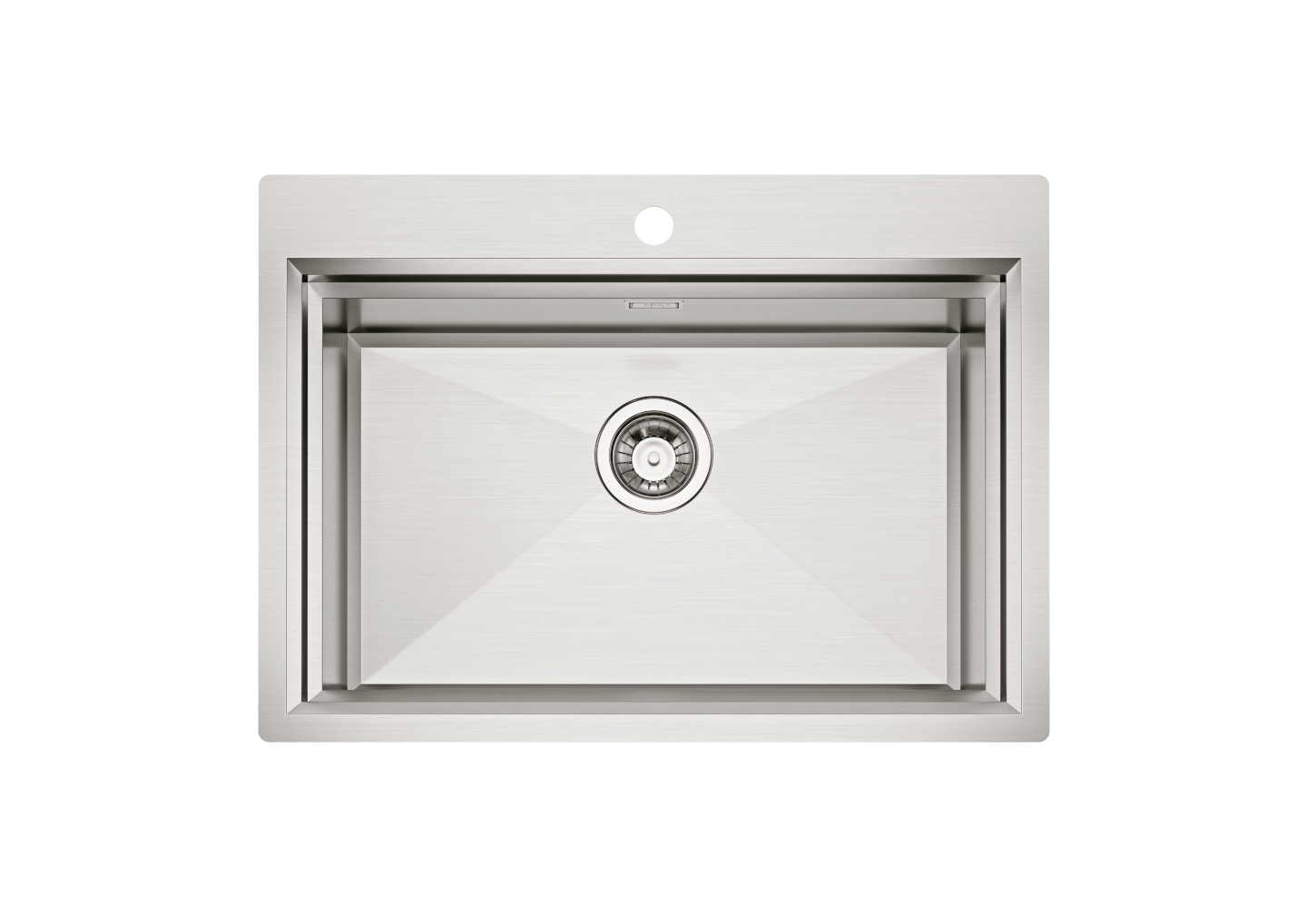

Harmony 71 IF

codice: HA71IF

Material: AISI 304 18/10 Stainless Steel

Thickness: 1mm regular

finish: Satinplus


Base 75 cm

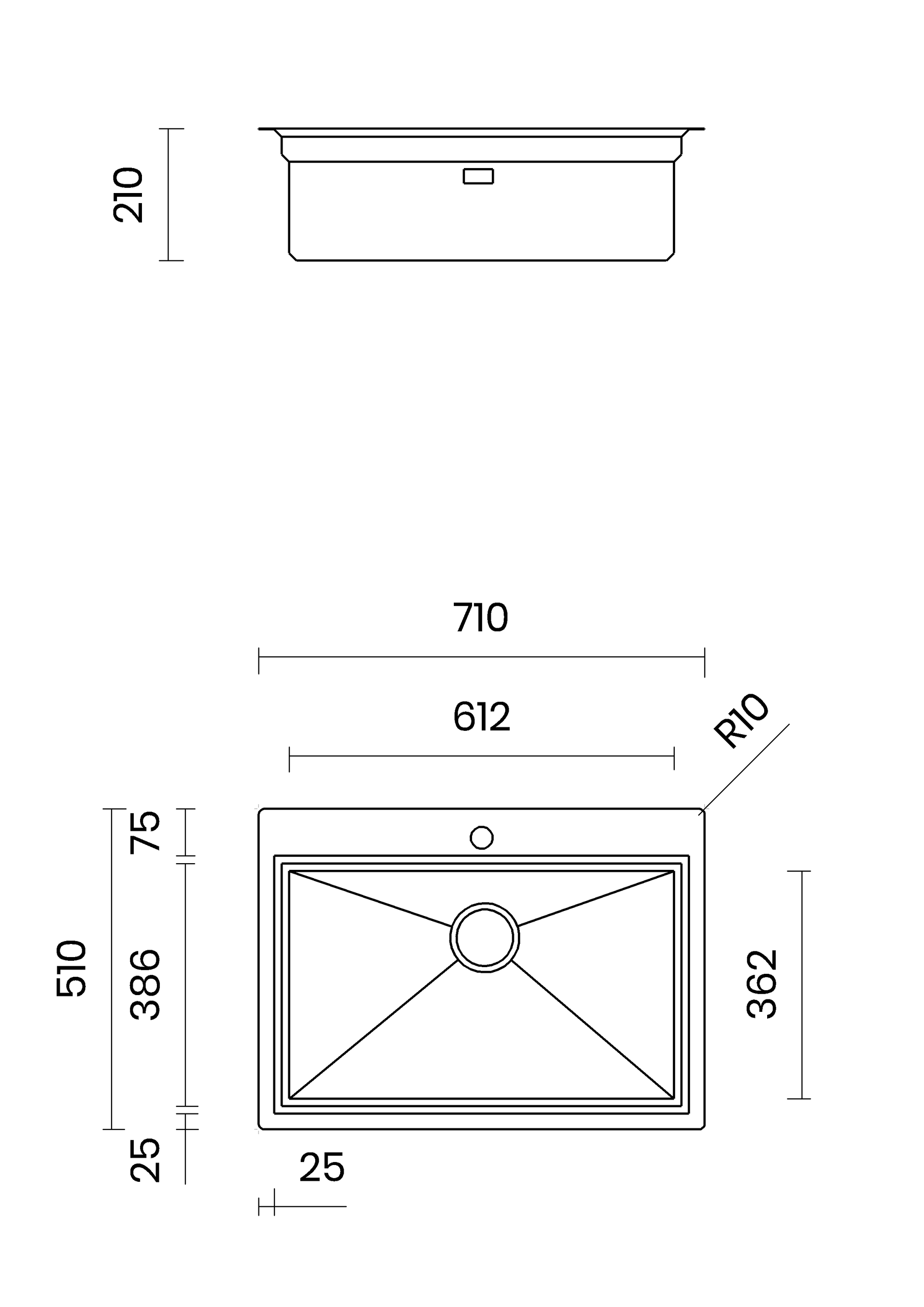

External dimensions 710x510 mm

tub dimensions 612x362 mm

radius 0mm


too full: perimeter

waste: Ø 114 mm in satin stainless steel

siphon included


installation: overtop


Packaging size: 77x57x30 cm

weight: 13.5 kg

the sink is already equipped with a central hole Ø 35 mm. Any additional holes must be specified when ordering

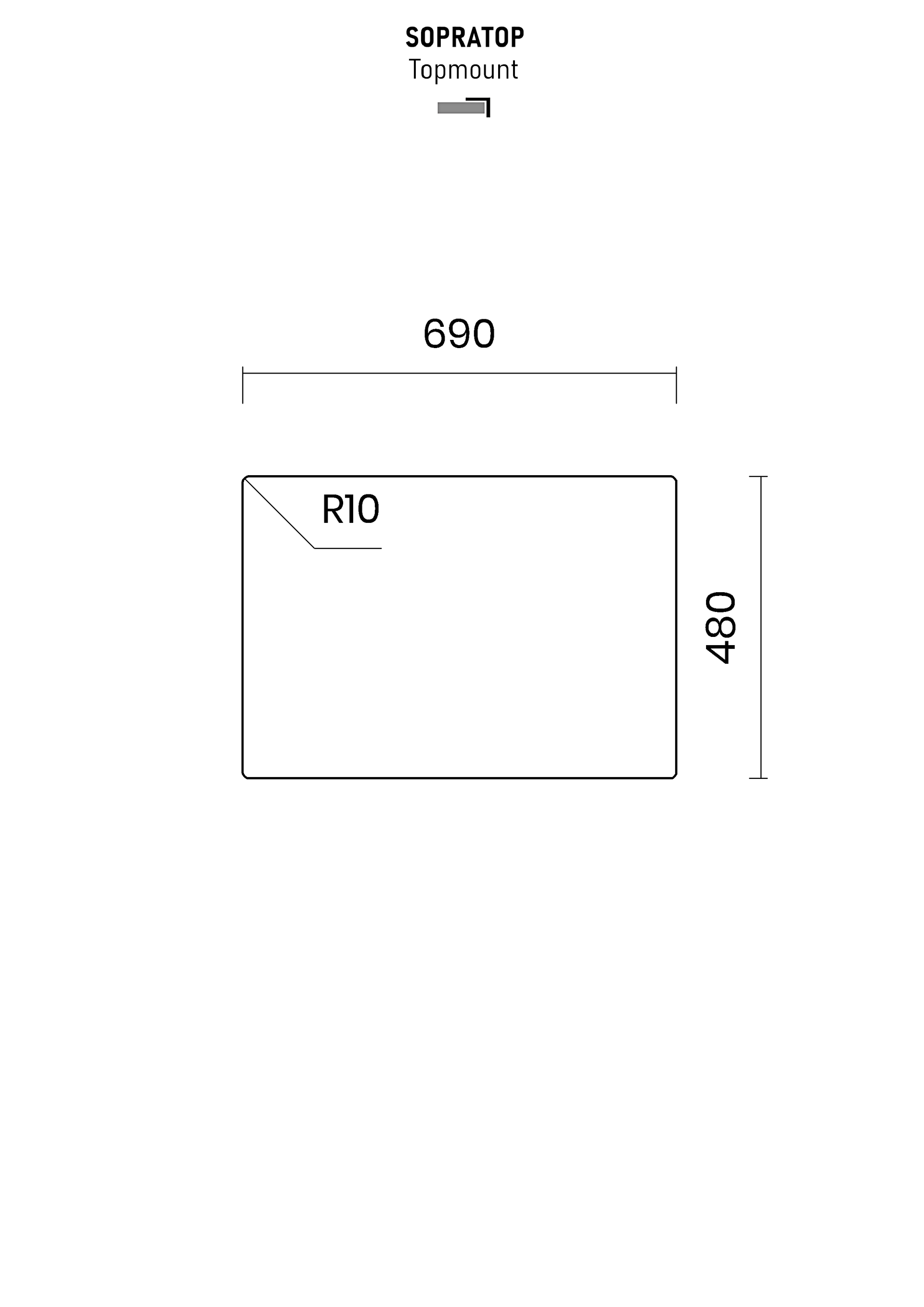

cut-out

downloads

Product sheet

installation sheet

file dxf

Recommended accessories

sliding tray

code 280.hr
data sheet

Stainless steel drip tray with sliding grid

code 280.hb
data sheet

sliding iroko cutting board

code 290.hi
data sheet

white sliding cutting board

code 285.hw
data sheet

sink care
